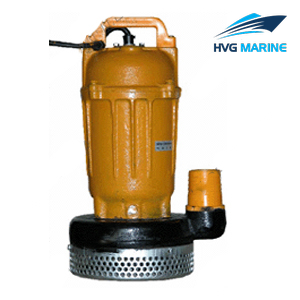

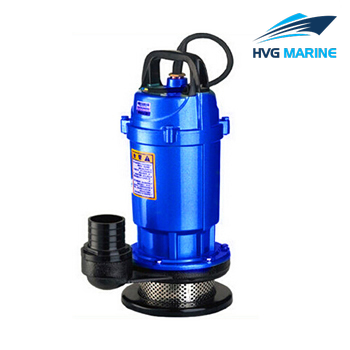

HVG MARINE PUMP 0035: FS Marine Stainless Steel Diving Pumps
Applications:
1. Applicable to transport sea water and fresh water,
2. Medium contain sand or other solid no more than 0.1% in volume ratio
Model Explanation
| Series Name | FS |
| Product Name | Stainless Steel Diving Pump |
| Model | HS-FS01 |
| Capacity m3/h | 8.4-200 |
| Head m | 4.5-50 |
| Current r/min | 5.7-16.8 |
| Motor power kw | 2.2-7.5 |
| Calibermm | 40-150 |
| Application | Capable for matine water supply and drainage,and to tansport water-type medium contain sand or other solid no more than 0.1% in volume ratio |
| Medium tempreture | Max.40℃ |
|
Type |
Capacity (m3/h) |
Head (m) |
Range of Flow (m3/h) |
Power (kW) |
Current (A) |
Diameter (mm) |
Weight (kg) |
|
FS8.4-40-2.2 |
8.4 |
40 |
6–10 |
2.2 |
5.7 |
40 |
45 |
|
FS15-26-2.2 |
15 |
26 |
10–18 |
2.2 |
5.7 |
40 |
49 |
|
FS25-17-2.2 |
25 |
17 |
17–30 |
2.2 |
5.7 |
50 |
41 |
|
FS65-7-2.2 |
65 |
7 |
45–78 |
2.2 |
5.7 |
100 |
41 |
|
FS100-4.5-2.2 |
100 |
4.5 |
70–120 |
2.2 |
5.7 |
128 |
38 |
|
FS8.4-50-3 |
8.4 |
50 |
6–10 |
3 |
7.54 |
40 |
47 |
|
FS12.5-40-3 |
12.5 |
40 |
8–15 |
3 |
7.54 |
40 |
47 |
|
FS15-36-3 |
15 |
36 |
10–18 |
3 |
7.54 |
40 |
46 |
|
FS20-30-3 |
20 |
30 |
14–24 |
3 |
7.54 |
40 |
48 |
|
FS25-36-3 |
25 |
26 |
17–30 |
3 |
7.54 |
50 |
46 |
|
FS40-16-3 |
40 |
16 |
28–48 |
3 |
7.54 |
65 |
47 |
|
FS65-10-3 |
65 |
10 |
45–78 |
3 |
7.54 |
100 |
45 |
|
FS100-6-3 |
100 |
6 |
70–120 |
3 |
7.54 |
128 |
48 |
|
FS160-4-3 |
160 |
4 |
112–192 |
3 |
7.54 |
128 |
43 |
|
FS12.5-50-4 |
12.5 |
50 |
8–15 |
4 |
8.9 |
40 |
59 |
|
FS25-32-4 |
25 |
32 |
17–30 |
4 |
8.9 |
50 |
57 |
|
FS40-21-4 |
40 |
21 |
28–48 |
4 |
8.9 |
65 |
54 |
|
FS65-13-4 |
65 |
13 |
45–78 |
4 |
8.9 |
100 |
51 |
|
FS200-4-4 |
200 |
4 |
140–240 |
4 |
8.9 |
150 |
52 |
|
FS20-50-5.5 |
20 |
50 |
14–24 |
5.5 |
12 |
50 |
75 |
|
FS25-40-5.5 |
25 |
40 |
17–30 |
5.5 |
12 |
50 |
76 |
|
FS40-28-5.5 |
40 |
28 |
28–48 |
5.5 |
12 |
65 |
83 |
|
FS100-12-5.5 |
100 |
12 |
70–120 |
5.5 |
12 |
125 |
65 |
|
FS40-40-7.5 |
40 |
40 |
28–48 |
7.5 |
16.8 |
65 |
105 |
|
FS65-26-7.5 |
65 |
26 |
45–78 |
7.5 |
16.8 |
80 |
101 |
|
FS200-9-7.5 |
200 |
9 |
140–240 |
7.5 |
16.8 |
150 |
100 |
