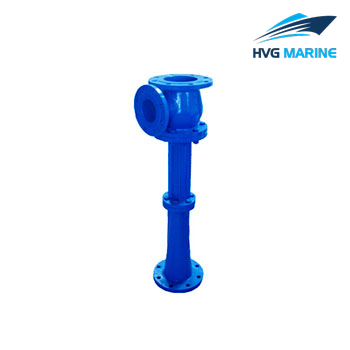

HVG MARINE PUMP 0001: CPJ Marine Ejector Pump

Applications:

The Series of various types of jet pump for ship drainage system drainage equipment, can also be used for conveying liquid, gas mixture, the mixture of gas and liquid, powder, more suitable for vacuum diversion, vacuum evaporation, vacuum filtration, vacuum drying, deodorizing. The basic working principle of jet pump by the main components of the first word is wraparound for ‘spray, suction, mixed, expansion of’ four words. Namely: the injection pump is the use of high-voltage workflow body through the nozzle to produce 25 ~50m/s high-speed jet (Spray); formed in the suction chamber pressure, ejection of transported liquid (Suction); working fluid wrapped with the ejected fluid into the mixing chamber for mixing together with the energy exchange (Mixed); again diffuser chamber by converting kinetic energy into pressure energy discharge (Expanded).

Model Explanation

for example CPJ40-50-65
CP — Marine ejector pump
J — Inlet form J
40 — Working water inlet diameter 40 mm
50 — Suction diameter 50 mm
65 — Discharge diameter 65 mm

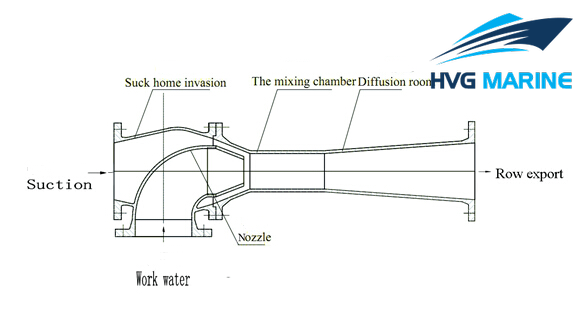

Structure:

Technical specification:

Performance Parameter

Type	Capacity (m3/h)	Discharge pressure (m)	Inlet Head (m)	Work water Pressure (MPa)	Working Capacity (m3/h)	Weight (kg)
CPJ40-50-65	0～15	5～30	3～9	0.4～1.4	5～15	16
CPJ50-80-80	0～40	5～30	3～9	0.4～1.4	20～45	26
CPJ80-100-100	0～70	5～30	3～9	0.4～1.4	40～80	40
CPJ80-125-125	0～70	5～30	3～9	0.4～1.4	40～80	60
CPJl00-125-125	0～100	5～30	3～9	0.4～1.4	60～120	60
CPJl00-150-150	0～125	5～30	3～9	0.4～1.4	90～150	75
CPJl25-150-200	0～180	5～30	3～9	0.4～1.4	100～220	130
CPJ150-200-200	0～320	5～30	3～9	0.4～1.4	200～370	165
CPJ150-200-250	0～420	5～30	3～9	0.4～1.4	250～500	180
CPJ200-200-250	0～250	5～30	1～7	0.1～0.6	300～700	190
CPJ250-250-300	0～400	5～30	1～7	0.1～0.6	500～1400	285
CPJ300-300-350	0～600	5～30	1～7	0.1～0.6	900～2000	370
