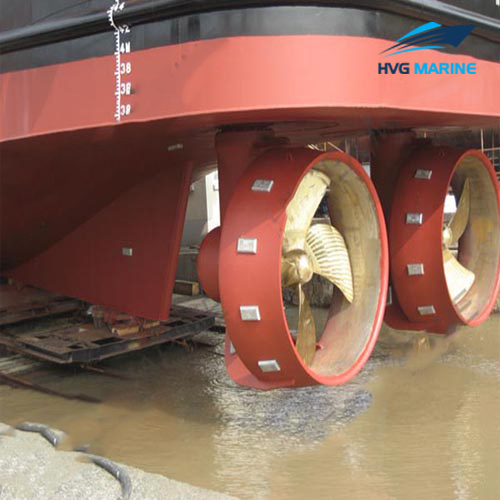

HVG MARINE PROPULSION EQUIPMENT 0100: Marine Azimuth Thruster

Reliability is the top priority for azimuth thruster design. Our azimuth thrusters run well on various kinds of ships. They can be mounted on tug boat, harbor workboat, service ship, ferry, and engineering ship. There are two kinds of drive type: Z-drive and L-drive. Our azimuth thrusters can be driven be electric motor or hydraulic motor. They are approved by CCS, BV, DNV, ABS, NK, KR, GL, RINA, etc. Any question about our azimuth thruster, please be free to contact us, we will answer you timely.

Characteristics:

1. Combined design propeller and nozzle together, enlarge diameter of propeller and low down its rotate speed, which keep high propulsion efficiency and enhance thrust force.
2. Carefully design the rudder-rod profile improve propulsion efficiency and reduce vibration, especially reduce steering torque.
3. Adopt high-strength gear and bearing of high speed, seals and pipeline also being carefully design, which improve the system’s reliability and longevity.
4. The steering mechanism can be driven by electrical motor or hydraulic motor.
5. According to the difference of operation condition, it can be divided into three kinds: FPP with nozzle, CPP with nozzle, without nozzle.
6. Azimuth thruster can be retractable according customer’s requirement.

Technical specification:

Main parameters:

Type	Input power(kW)	Normal Input speed(rpm)	Normal Propeller Ф(mm)	Max. bollard pull (T)
MRP50	90-147	1500-2500	700/800	1.8
MRP90	164-240	1500-2350	800/900	2.8
MRP100	250-358	1200-2350	1000/1100/1200	6.2
MRP110	372-480	1200-2350	1300/1400	8.1
MRP130	522-675	830-1800	1500/1600	11.5
MRP165	700-970	830-1800	1700/1800	16.5
MRP185	1030-1380	830-1500	2000/2100	23.1
MRP200	1425-1780	750-1500	2200/2300	28.8
MRP225	1920-2250	550-1200	2500/2600	36.4
MRP245	2300-2600	550-1200	2700	40.1
MRP300	2750-3400	550-1200	3300/3500	55.1
