HVG MARINE PROPULSION EQUIPMENT 0098

HVG MARINE PROPULSION EQUIPMENT 0098: JT/T259 Shafting Intermediate Bearing

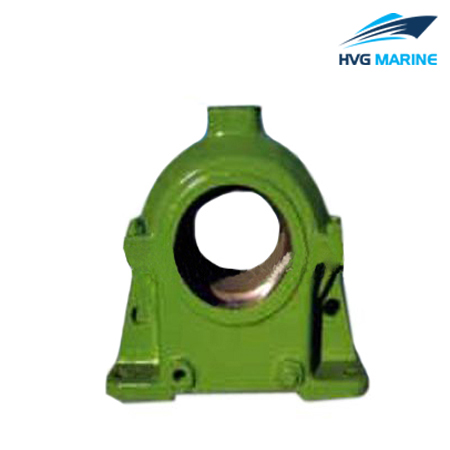

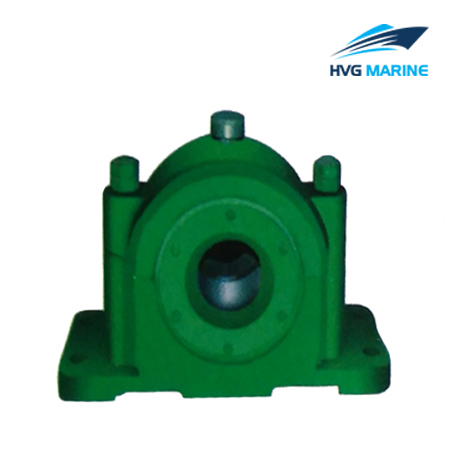

Made of metal, this product is the type D marine shafting intermediate bearing. It is a kind of integral rolling bearing and suggested for medium inland water vessels use. Certificates like CCS, ABS, DNV, BV, NK, and GL can be offer according to customer’s request. To meet customers’ need, we can offer OEM service and design the product according to clients’ request.

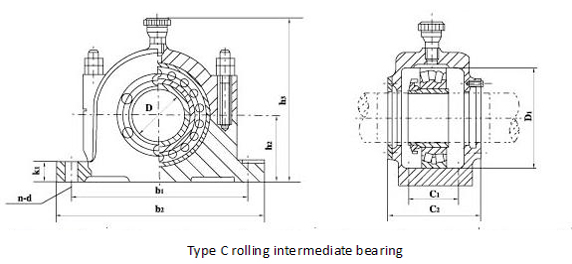

Drawing of Type C Shafting Intermediate Bearing

Technical specification:

Drawing and specification:

Unit: mm

Type		Dimensions (mm)										Weight (kg)
Type		D	C1	C2	D1	b1	b2	h3	h1	h2	n-d	Weight (kg)
C	70	70	70	128	140	270	310	224	30	95	4-21	19
	80	80	80	138	160	290	330	243	30	105	4-21	26
	90	90	90	148	180	320	360	270	35	120	4-21	30
	100	100	100	158	200	350	390	290	35	130	4-221	38
	110	110	110	178	215	370	420	310	40	137.5	4-25	46
	125	125	130	198	250	420	470	360	45	165	4-25	59
