HVG MARINE OUTFITTING EQUIPMENT 0390

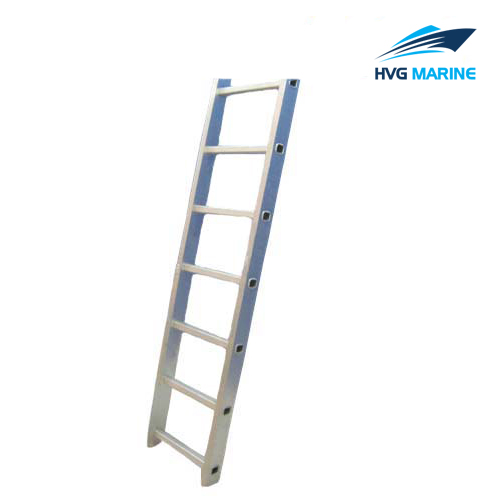

HVG MARINE OUTFITTING EQUIPMENT 0390: Marine Aluminum Pipe Vertical Ladder

This product is a ship pipe vertical ladder made with aluminum. It is used for the crews to go up and down. It is approved by the CB/T670-94 standard and we can offer relevant certificates about this boat ladder like BV, CCS, ABS, GL, LR, etc. Our company can supply various sizes accord with international standard. To meet clients’ special requirements, we also offer OEM service.

Features:

Number of steps: 2-12
Deck height: 800-4000
Customized color
Light weight, safety and reliable structure

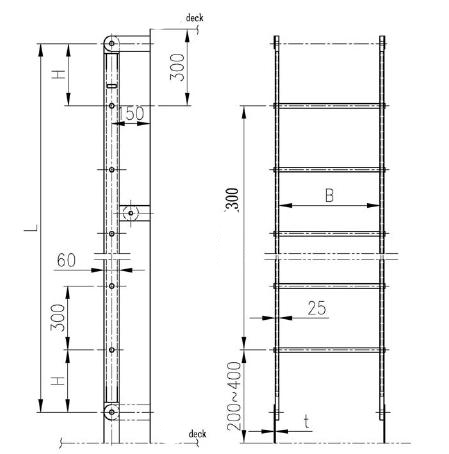

Drawing:

Technical specification:

Technical specification

Number of steps	Deck height	L	H	t	Weight(kg)
Number of steps	Deck height	L	H	t	B=325	B=400
2	800-1000	600	150	6	3.65	3.73
3	1150-1300	1000	200	6	4.71	4.83
4	1400-1600	1200	150	6	5.34	5.5
5	1750-1900	1600	200	6	6.4	6.6
6	2000-2200	1800	150	6	7.03	7.27
7	2350-2500	2200	200	8	8.43	8.71
8	2600-2800	2400	150	8	9.06	9.38
9	2950-3100	2800	200	8	10.48	10.84
10	3200-3400	3000	150	8	11.11	11.51
11	3550-3700	3400	200	8	12.17	12.61
12	3800-4000	3600	150	8	12.8	13.28
