HVG MARINE OUTFITTING EQUIPMENT 0384: Marine Weathertight Single-Leaf Steel Door
This standard has following features: first, clear size of opening 1000×500mm is canceled; second, 12 new clear sizes are added; third, the place of stiffener is adjusted; last, the flat steel door frame is canceled. Marine weathertight single-leaf steel door is installed on the upper structure above deck or deck house. There are 8 available types: AF, AY, BF, BY, CF, CY, DF, DY. You can chose our products according to you requirements. This door can withstand adverse weather conditions which provides you a safer voyage.
Features of Marine Weathertight Single-Leaf Steel Doors
- Used for the doorway of upper structure above deck or deck house
- Specific design of doors for various installation locations

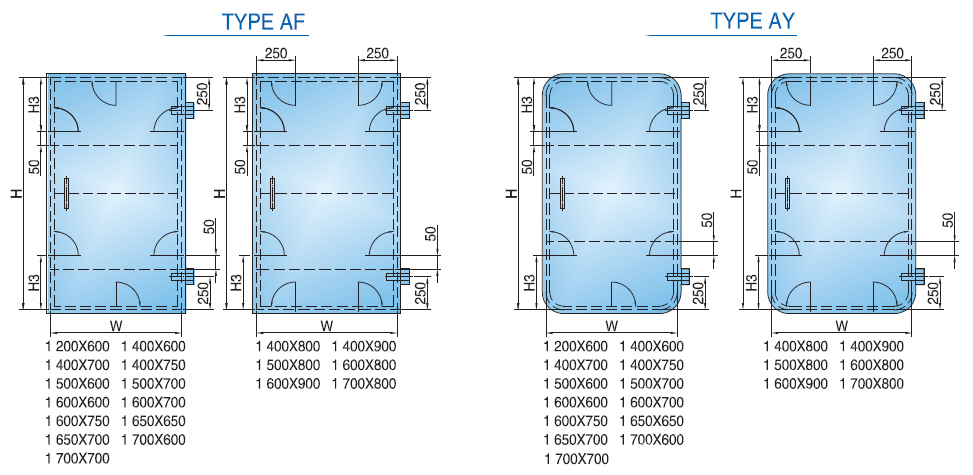

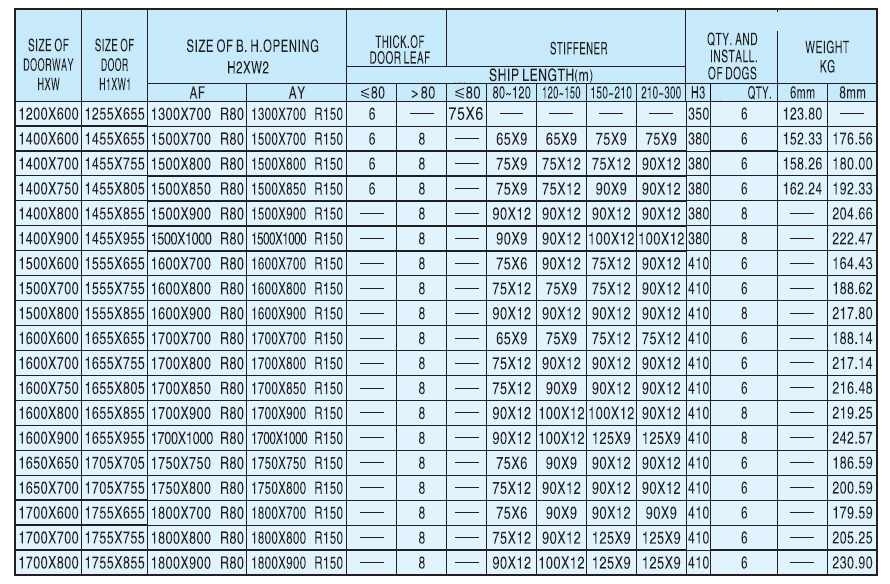

Product Drawing of Type AF, AY:
Comment:
The clear size of class A square-corner marine weathertight single-leaf steel door is 1600*600, its thickness is 8mm and its stiffener is (65*9) mm.

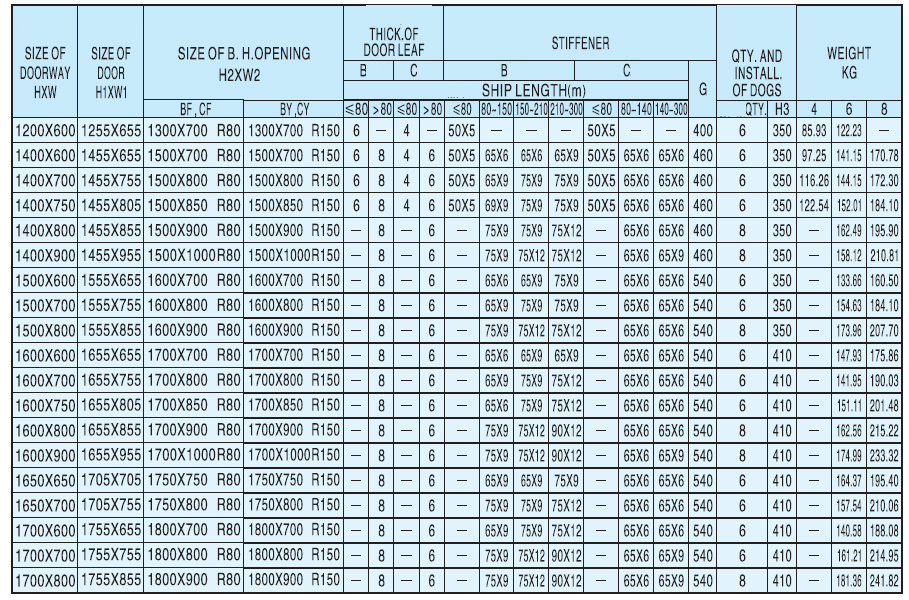

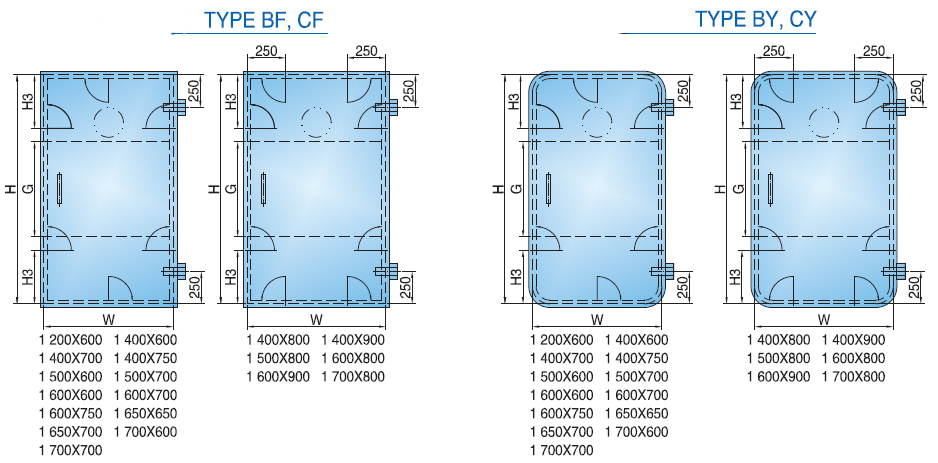

Product Drawing of Type BF,CF and Type BY,CY
Comment:
The clear size of class B round-corner marine weathertight single-leaf steel door is 1600*600, its thickness is 8mm and its stiffener is (65*9) mm.

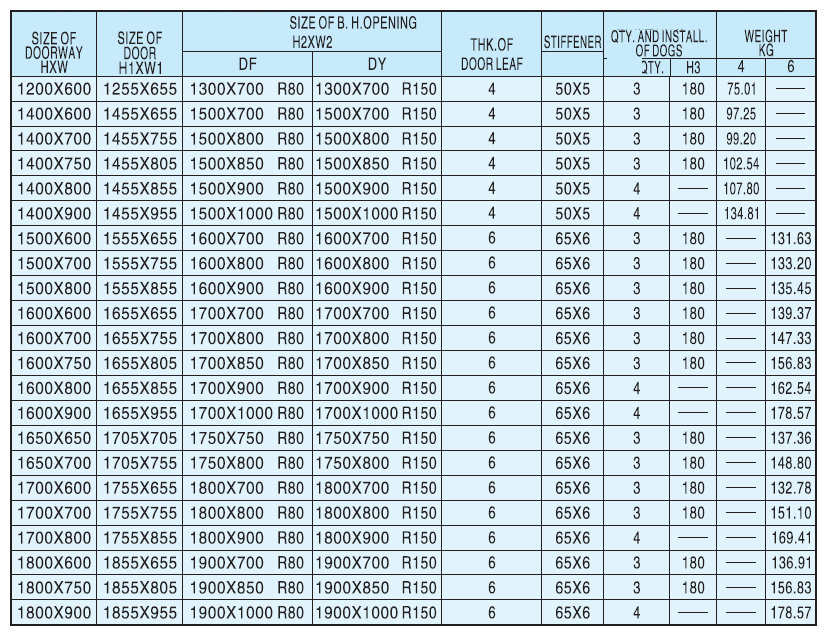

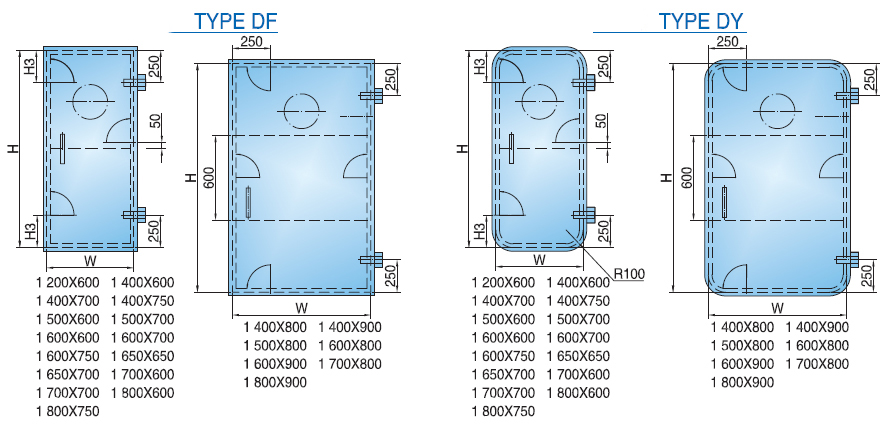

Product Drawing of Type DF,DY
Comment:
The clear size of Class D square-corner marine weathertight single-leaf steel door is 1400×750, its thickness is 4mm and its stiffener is (50×5)mm.
