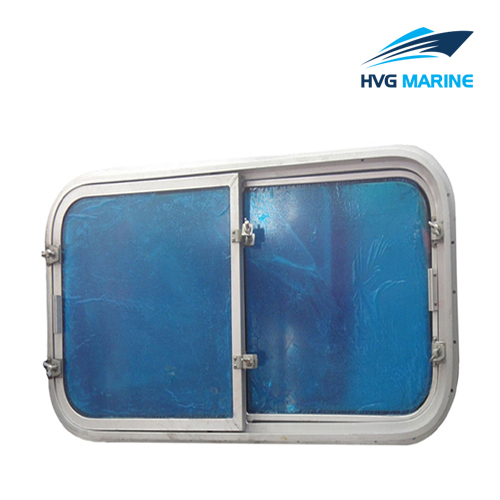

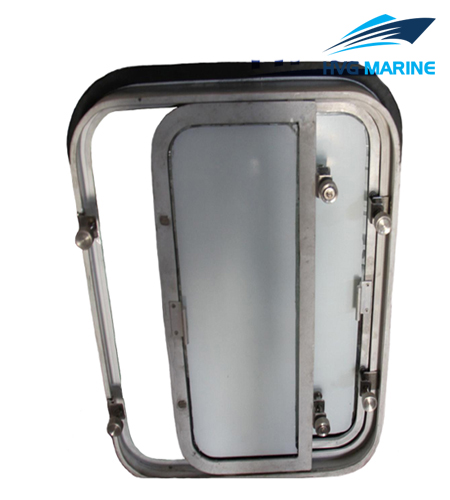

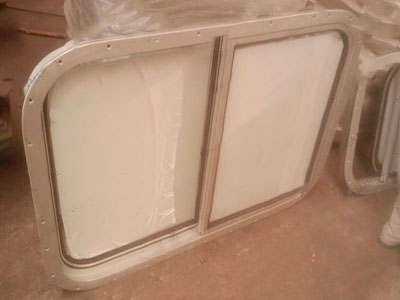

HVG MARINE OUTFITTING EQUIPMENT 0366: Ship Aluminum Weather-tight Double Sliding Window
Made with aluminum, this sliding window has a new structure, light weight and good tightness. It can be fitted in superstructure cabin, yacht and touristy ship. We can supply clear, dark brown or other color glass according to customers’ requirements.

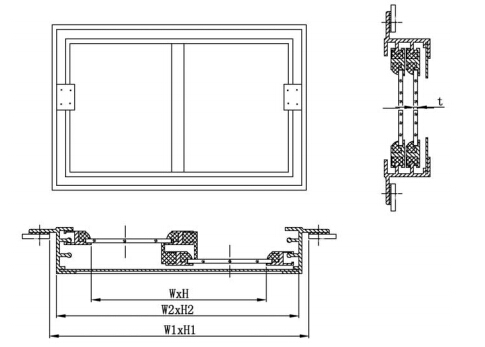

Drawing:
|
Size of clear(mm) |
t |
Opening size(mm) w1×h1 |
Size of window seat(mm) w2×h2 |
Weight(kg) |
|
600×400 |
5 |
685×485 |
679×479 |
8.2 |
|
800×600 |
5 |
885×685 |
879×679 |
13.5 |
|
900×700 |
5 |
985×785 |
979×779 |
17.8 |
|
1000×800 |
5 |
1085×885 |
1079×879 |
21.8 |
|
1200×800 |
5 |
1285×885 |
1279×879 |
26.2 |
|
1400×1000 |
5 |
1485×1085 |
1479×1079 |
32 |
