HVG MARINE OUTFITTING EQUIPMENT 0364

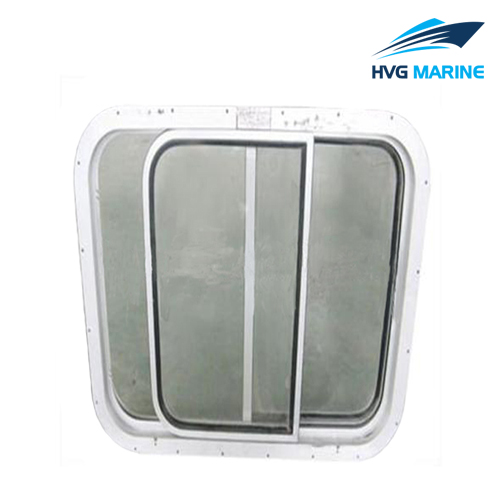

HVG MARINE OUTFITTING EQUIPMENT 0364: Yacht Aluminum Three Pane Sliding Window

Made with aluminum and glass, this product is a kind of slinging windows for yacht and pleasure ship. It has good tightness, light weight and three moveable window sashes. We can supply for sizes for this product, but if you have any special demand, we can offer customized service.

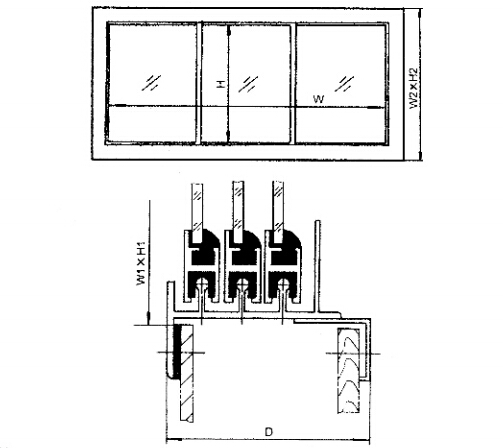

Drawing:

Technical specification:

Specification

Size of clear(mm) w×h	External size(mm) w2×h2	Size of opening(mm) W1×h1	Depth of frame D	Weight(kg)
900×400	1026×526	982×482	80～120	14.8
1200×500	1326×626	1282×582		20.4
1500×600	1626×726	1582×682		28.7
1800×800	1926×926	1882×882		38.9
