HVG MARINE OUTFITTING EQUIPMENT 0357: Marine Funnel Closeable Shutter

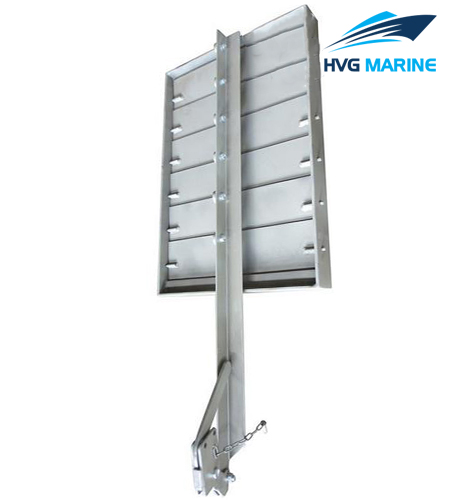

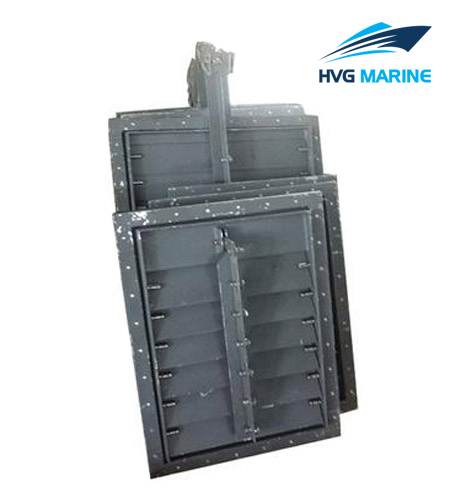

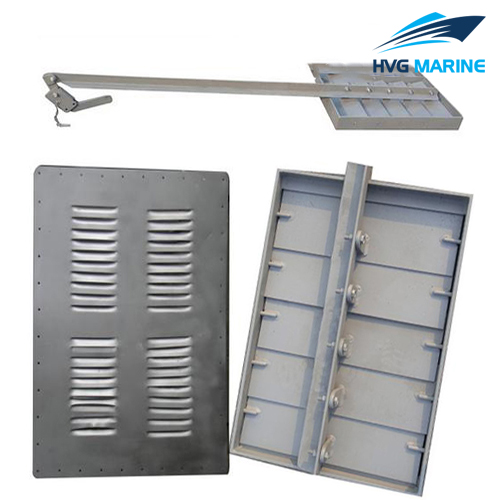

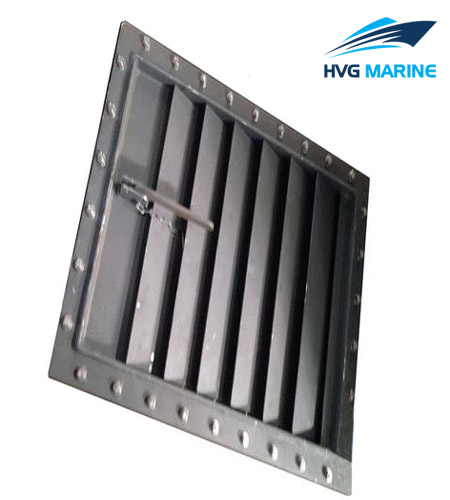

Made with steel or aluminum, this ship’s closeable shutter is used for funnel to keep sun off and ventilate. This marine funnel shutter produced according to international standard such as ISO, GB, CB, CB/T, and JIS etc. It is certificates about the product are Chinese CCS, English LR, American ABS, French BV, Norwegian DNV, Japanese NK, Korean KR. We’d like to design and manufacture other special structures to meet customers’ demand.

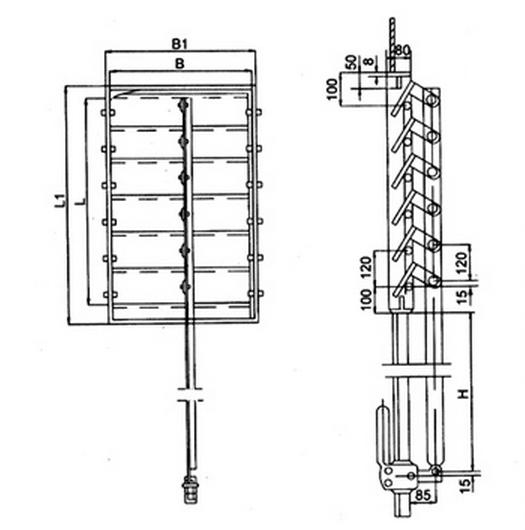

Drawing:

Technical specification:

Specification

Code	Material of shutter
N	Steel
L	Aluminum

Nominal size	Size of opening	Shutter		Weight（kg）
B×L	B1×L1	L×W×T	QTY	Steel（N）	Aluminum（L）
400×580	416×680	396×160×4	5	28.6	19.5
500×460	516×560	496×160×4	4	28.3	18.9
500×700	516×800		6	37.0	20.7
500×940	516×1040		8	45.6	25.3
500×1180	516×1280		10	54.2	30.8
500×1420	516×1520		12	62.9	37.2
