HVG MARINE OUTFITTING EQUIPMENT 0356: Marine Aluminum Alloy Soundproof Window

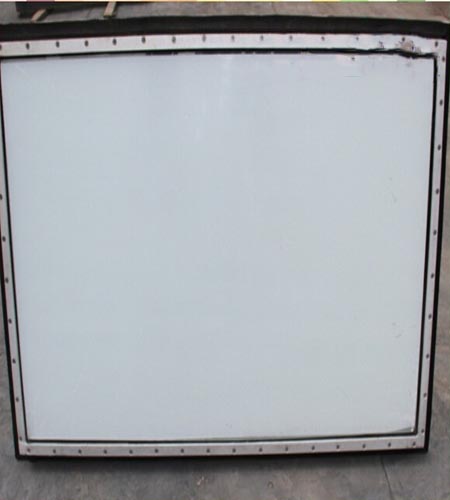

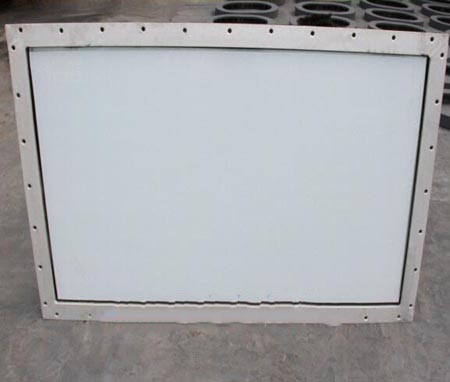

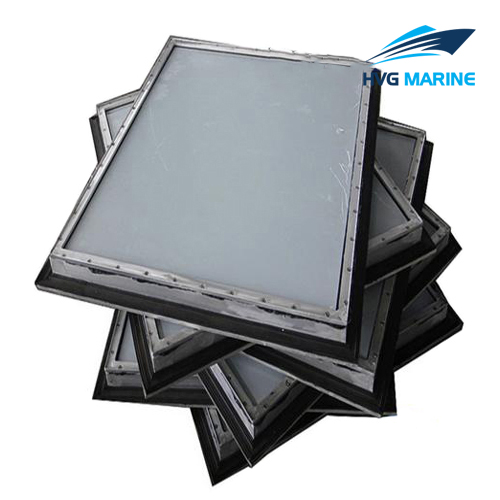

This aluminum alloy window is used for cabin and meeting room in which need soundproof, heat insulation and keep temperature. This soundproof window is designed with clear view screen or without clear view screen and we can supply bolted or welded type for your option. It is meets the requirements of CCS, DNV, BV, LR, KR, and NK certificates.

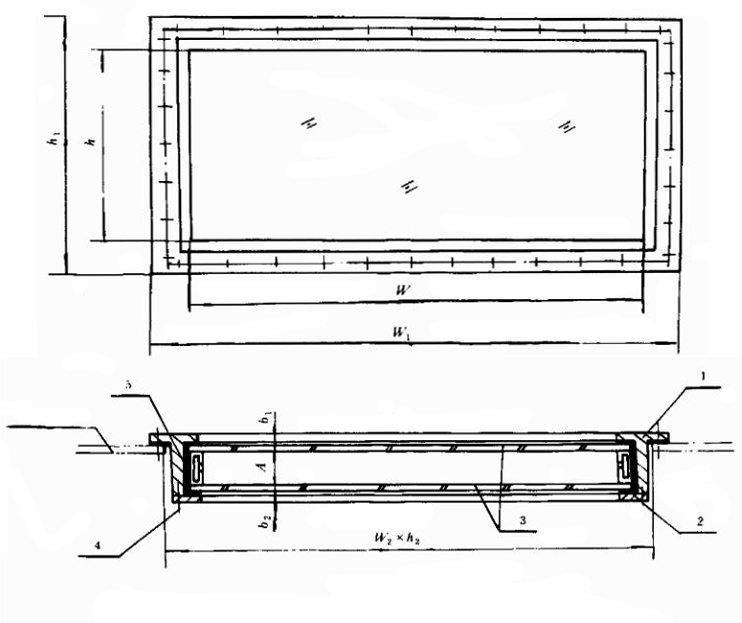

Drawing:

Technical specification:

Specification

Code	Glass
G	Safety glass
P	Plate glass
J	Soundproof glass
C	Dark brown safety glass

Nominal size w×h	External size W1×h1	Size of opening W2×h2	Glass thickness b1	Hollow A	Glass thickness b2	Soundproof TL(dB)	Bolt		Weight (kg)
Nominal size w×h	External size W1×h1	Size of opening W2×h2	Glass thickness b1	Hollow A	Glass thickness b2	Soundproof TL(dB)	QTY	DIA	Weight (kg)
300×425	420×545	352×477	6	6	6	29	14	M12	10.0
300×425	420×545	352×477	6	9	6	30.5	14	M12	10.0
355×500	475×620	407×552	6	9	6	29	16	M12	15.6
355×500	475×620	407×552	6	9	6	31.5	16	M12	16.2
400×560	520×680	452×612	6	9	6	28.6	18	M12	18.2
400×560	520×680	452×612	6	9	6	31.5	18	M12	18.6
450×630	570×750	502×682	6	9	6	31.5	20	M12	21.2
500×710	620×830	552×762	6	9	6	31	22	M12	25.3
900×630	1020×750	952×682	6	12	6	30.5	26	M12	29.4
900×630	1020×750	952×682	8	16	6	31.8	26	M12	33.2
900×630	1020×750	952×682	8	24	6	35	26	M12	34.0
1000×800	1120×920	1052×852	8	16	6	31	32	M12	45.9
1000×800	1120×920	1052×852	8	24	6	35	32	M12	46.7
1200×800	1320×920	1252×852	8	24	6	34	34	M12	54.4
1400×800	1520×920	1452×852	8	24	6	33	36	M12	59.2
1600×1000	1720×1120	1652×1052	8	24	6	32	40	M12	81.3
1800×1200	1920×1320	1852×1252	8	24	6	30.52	44	M12	104.5
