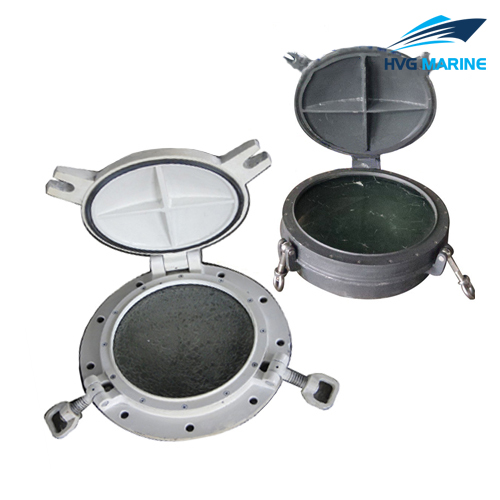

HVG MARINE OUTFITTING EQUIPMENT 0300: A60 Fireproof Side Scuttle
This product is a kind of fire resistant side scuttles made with steel, aluminum, stainless steel. It can be installed by welded or bolted. This fire proof side scuttle is applicable for accommodations with required fire rating A60. We can offer relevant certificates about this side scuttle like CCS, ABS, DNV, GL etc

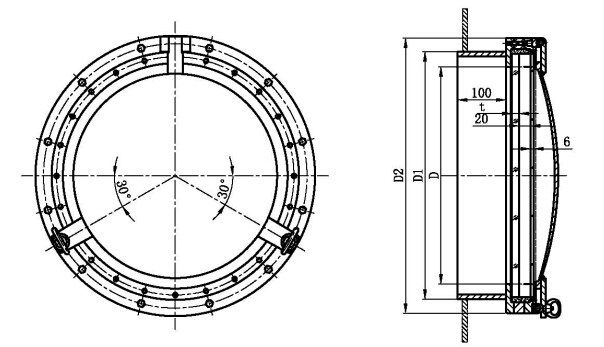

Drawing:
|
Nominal size |
Opening size of bulkhead |
External size |
Glass thickness |
Weight (kg) |
|
|
Type A |
Type B |
||||
|
200 |
253 |
330 |
10 |
8 |
22.1 |
|
250 |
303 |
380 |
12 |
8 |
29.1 |
|
300 |
363 |
430 |
15 |
10 |
35.2 |
|
350 |
413 |
480 |
15 |
12 |
45.8 |
|
400 |
463 |
530 |
19 |
12 |
55.2 |
|
450 |
513 |
580 |
19 |
15 |
72.2 |
Identification example:
Welded A60 fireproof side scuttle, clear size 450mm—–A60 welded fireproof side scuttle 450
