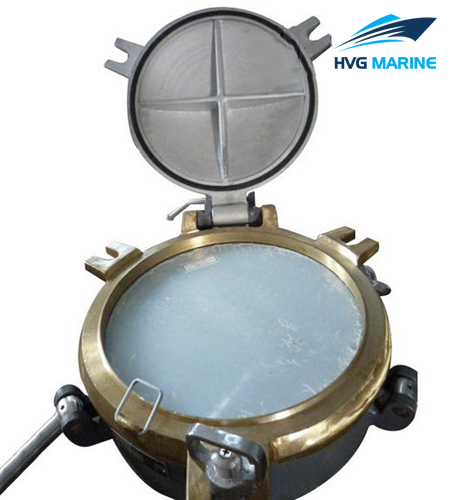

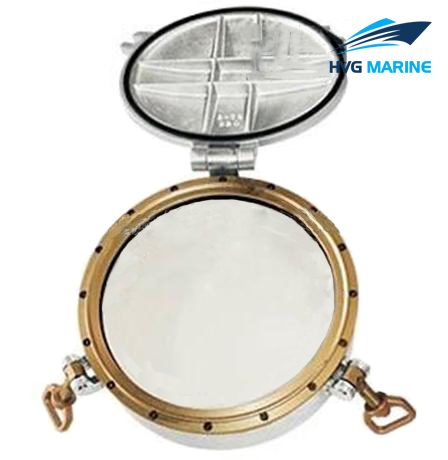

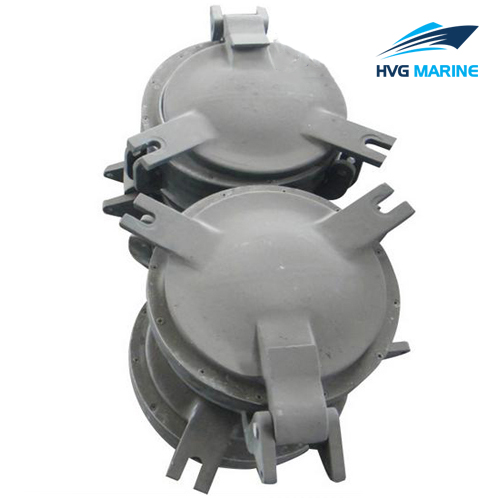

HVG MARINE OUTFITTING EQUIPMENT 0299: A0 Fire Proof Porthole for Ship
Made with steel, aluminum, copper or stainless steel, this product is a kind of fire resistant side scuttles. It can be installed by welded or bolted. This fire proof side scuttle is applicable for accommodations with required fire rating A0. It meets all the requirements of these certificates: CCS, ABS, DNV, GL etc. To satisfy customers’ demand, we can offer OEM service.

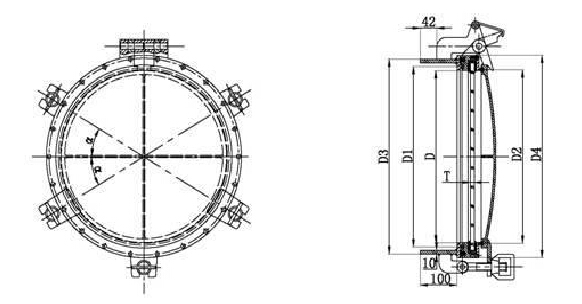

Drawing:
|
Clear size D |
D1 |
D2 |
D3 |
D4 |
α |
Fasteners qty |
Glass thickness |
Opening size |
Bolt qty |
|
|
deadlight |
frame |
|||||||||
|
200 |
222 |
204 |
250 |
280 |
45° |
2 |
3 |
10 |
253 |
12 |
|
250 |
272 |
254 |
305 |
330 |
45° |
2 |
3 |
10 |
308 |
14 |
|
300 |
322 |
304 |
360 |
380 |
31° |
3 |
3 |
12 |
363 |
16 |
|
350 |
372 |
354 |
410 |
430 |
32° |
3 |
3 |
12 |
413 |
18 |
|
400 |
422 |
404 |
460 |
480 |
31° |
3 |
3 |
12 |
463 |
20 |
Identification example:
Welded A0 fire proof side scuttle, with clear size of 400mm—-A0 fire proof side scuttle 400-W
