HVG MARINE OUTFITTING EQUIPMENT 0016

HVG MARINE OUTFITTING EQUIPMENT 0016: Fiberglass Grating

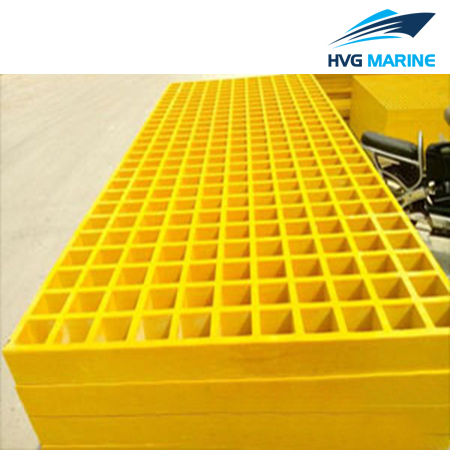

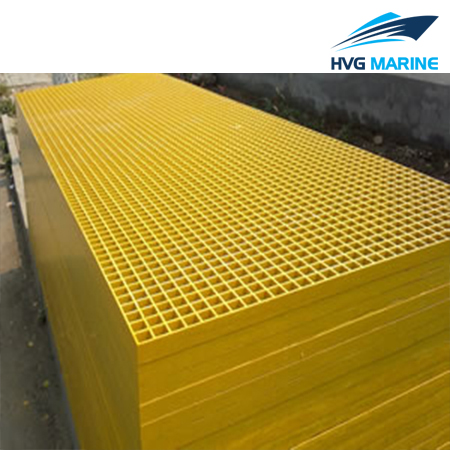

HVG MARINE OUTFITTING EQUIPMENT 0016 fiberglass grating is used in the ship deck or step bridge material. It can greatly reduce the weight of the deck and increase the cargo capacity.At the same time,it can prevent the medium from a ship and corrosion from seawater. HVG MARINE OUTFITTING EQUIPMENT 0016 fiberglass grating conforms to the standard of CCS,BV,GL,LR,DNV,etc.If you have interested in our products,welcome to contact us directly.

Technical specification:

Technical specification

Form code	Name	Single grating size	Thickness	Width of up rib	Width of down rib	Outline dimension	Application
BF	FRP steel grating	38*38 mm	30 mm	6.5 mm	5 mm	5001000mm 6001000mm 7001000mm 8001000mm	machine furnace storehouse passageway,deck walkway,platform
		38*38 mm	25 mm	6.4 mm	5 mm
		40*40mm	25 mm	6.5 mm	5 mm
