HVG MARINE MOORING EQUIPMENT 0270: Double Bollard
Bollard materials are steel, iron, ductile iron or stainless steel for customer’s choice. We can offer ISO9001, CCS, ABS, BV,DNV or other certificates for every bollard. For more information, please feel free to contact us.

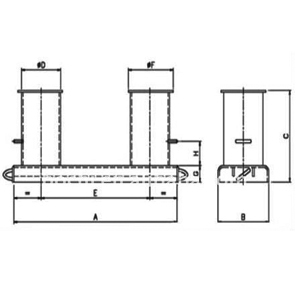

Drawing:
| Product No. | Bolts Qty | Capacity(Tonnes) | Dimensions(mm) | |||||||||
| A | B | C | D | E | F | G | H | J | K | |||
| S-001 | 5 | 40 | 205 | 205 | 160 | 425 | 50 | 480 | 410 | 165 | 460 | 165 |
| S-002 | 5 | 90 | 300 | 300 | 198 | 510 | 70 | 650 | 650 | 280 | 600 | 230 |
| S-003 | 7 | 200 | 360 | 360 | 200 | 660 | 100 | 970 | 840 | 356 | 760 | 240 |
| S-004 | 6 | 200 | 360 | 360 | 200 | 620 | 80 | 780 | 760 | 356 | 760 | 240 |
| S-005 | 7 | 300 | 440 | 440 | 305 | 685 | 85 | 920 | 900 | 380 | 840 | 280 |
