MOORING EQUIPMENT 0266
    • MOORING EQUIPMENT 0266
    HVG MARINE MOORING EQUIPMENT 0266

    HVG MARINE MOORING EQUIPMENT 0266: Dock Bollard

    • 1. Strong and durable design;
    • 2. Material: cast steel,cast iron, ductile iron;
    • 3. Bollard Capacity: 10 to 200 tonnes;
    • 4. Bolts Quantity: 4 to 6;
    • 5. Surface: polished, galvanized,smooth,anti-corrosion;
    • 6. 15 to 20 years working time;
    • 7. Warranty: 1 year;
    • 8. Certificate: CCS,ABS,BV,LR etc.;
    • 9. Custom made according to customer’s drawing;

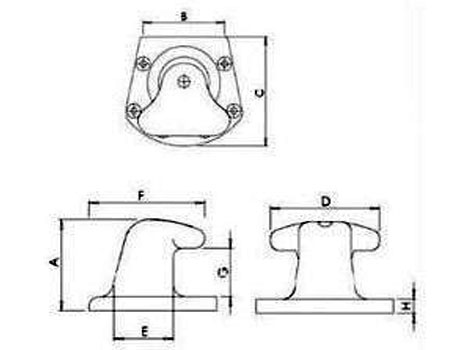

    Drawing:

    Technical specification:

    • Technical specification
    Product No. Bolts Qty Capacity (Tonnes) Dimensions(mm)
    A B C D E F G H
    T-001 4 10 200 216 236 160 106 218 120 32
    T-002 4 25 245 350 305 250 150 285 127 45
    T-003 5 30 290 430 410 360 190 360 150 45
    T-004 5 50 365 550 540 430 250 475 200 50
    T-005 5 75 430 650 650 520 300 570 235 70
    T-006 5 80 415 518 540 430 250 430 245 55
    T-007 7 120 490 678 642 600 330 584 290 65
    T-008 7 200 520 950 780 680 360 670 306 80
    T-009 7 200 600 950 780 680 360 670 386 80
    T-010 6 200 656 1020 930 800 460 830 349 100
