MOORING EQUIPMENT 0269
    • MOORING EQUIPMENT 0269
    HVG MARINE MOORING EQUIPMENT 0269

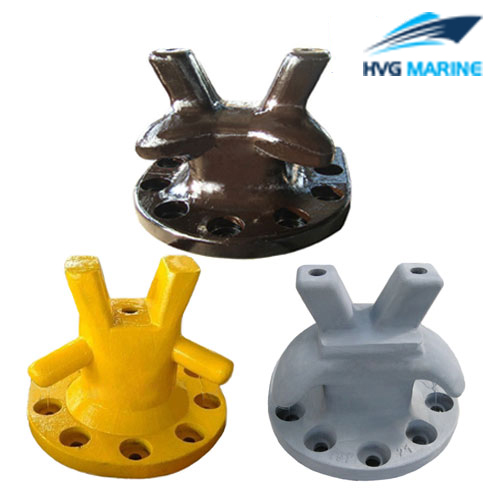

    HVG MARINE MOORING EQUIPMENT 0269: Staghorn

    • 1. Bollard Capacity: 40 to 300 tonnes;
    • 2. Bolts Quantity:5 to 7;
    • 3. Material type: cast steel/iron, ductile iron;
    • 4. 1 year quality warranty;
    • 5. Epoxy coating, polished, galvanized surface;
    • 6. 10 to 20 years working time;
    • 7. Certificate: CCS,ABS,BV,LR etc.
    • 8. Having different types of staghorn bollards;can be customized;

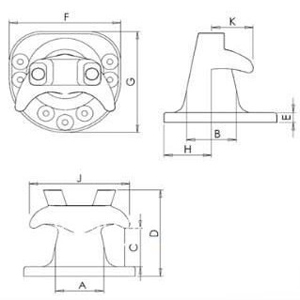

    Drawing:

    Technical specification:

    • Technical specification
    No. Bolts Qty Capacity(Tonnes) Dimensions(mm)
    A B C D E F G H J K
    S-001 5 40 205 205 160 425 50 480 410 165 460 165
    S-002 5 90 300 300 198 510 70 650 650 280 600 230
    S-003 7 200 360 360 200 660 100 970 840 356 760 240
    S-004 6 200 360 360 200 620 80 780 760 356 760 240
    S-005 7 300 440 440 305 685 85 920 900 380 840 280
