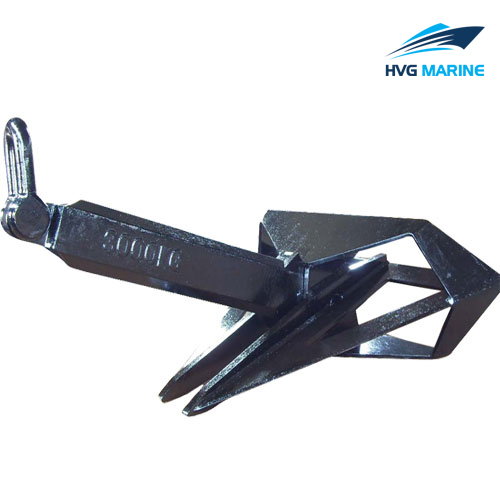

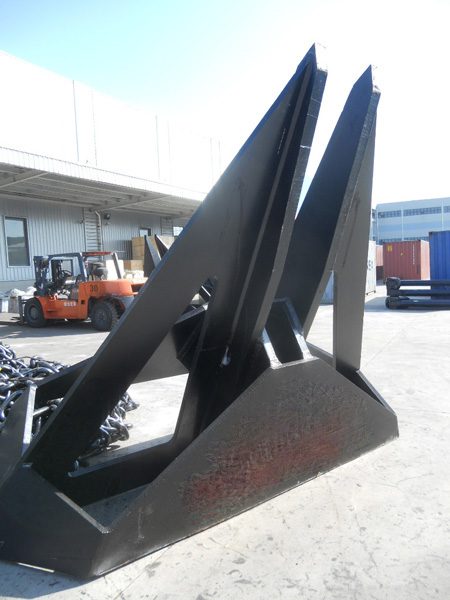

HVG MARINE MOORING EQUIPMENT 0225: High Holding Power Marine Anchor

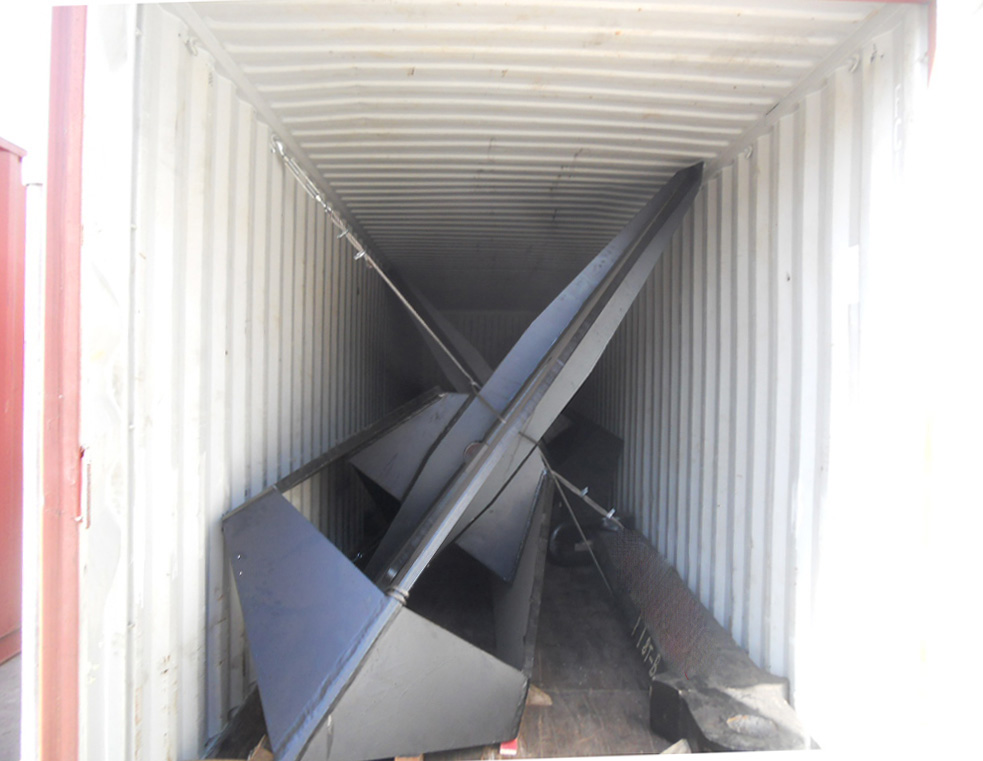

The open construction of this anchor offers for a smooth and excellent penetration in a variety of soils. The anchor offers excellent efficiency (weight/holding power) and easy dismantling for transport purposes. This anchor will hold true in the toughest conditions and will not rotate once it is set, which results in no decrease of holding capacity.
High holding power anchor is one type of offshore anchor, a smooth and excellent penetration in different seabeds.

1.Material: Steel Plate
2.Weight: 300KGS-25000KGS
3.Certificate: ABS, LR, BV, NK, DNV, RINA, RS, IRS,CCS.

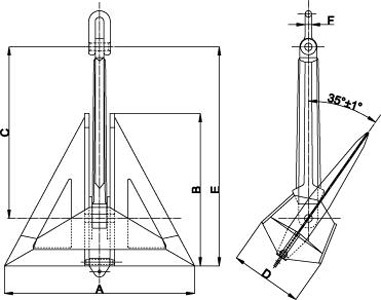

High Holding Power Marine Anchor Process Drawing

Technical specification:

Specifications:

Nominal Weight (kg)	Dimensions (mm)
Nominal Weight (kg)	A	B	C	D	E	F
300	1,200	960	1,080	457	1,380	Φ45
500	1,500	1,200	1,350	571	1,725	Φ50
1,000	1,875	1,500	1,686	714	2,155	Φ62
1,080	1,915	1,530	1,686	722	2,200	Φ62
2,000	2,363	1,890	2,124	900	2,715	Φ74
3,000	2,700	2,160	2,430	1,028	3,105	Φ90
4,000	2,975	2,380	2,676	1,133	3,420	Φ100
5,000	3,250	2,600	2,922	1,238	3,735	Φ110
7,000	3,575	2,860	3,216	1,360	4,110	Φ117
9,000	3,950	3,160	3,555	1,504	4,543	Φ135
10,000	4,100	3,280	3,690	1,561	4,715	Φ140
12,000	4,490	3,575	4,030	1,695	5,320	Φ145
13,500	4,670	3,720	4,195	1,765	5,535	Φ150
15,000	4,845	3,875	4,355	1,830	5,735	Φ150
18,000	5,140	4,080	4,610	1,940	6,080	Φ160
20,000	5,330	4,260	4,790	2,010	6,310	Φ170
22,500	5,490	4,360	4,905	2,060	6,470	Φ180
25,000	5,740	4,590	5,106	2,165	6,795	Φ180
27,500	5,980	4,785	5,385	2,245	7,095	Φ180
