HVG MARINE MOORING EQUIPMENT 0223

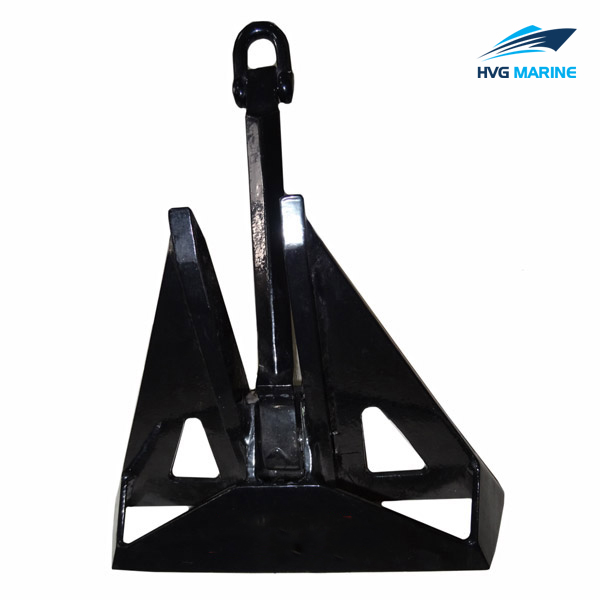

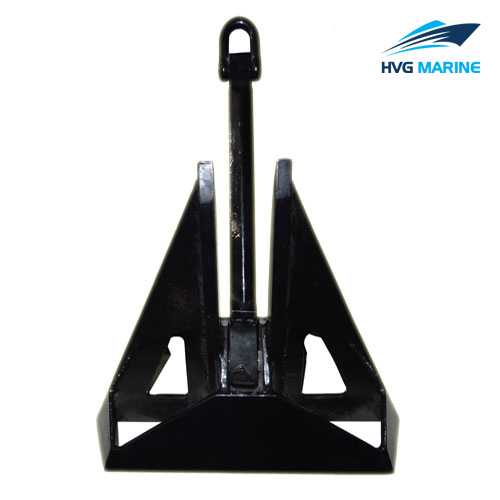

HVG MARINE MOORING EQUIPMENT 0223: Welding Marine Anchor

Major advantages of welding marine anchor:

1. Easy dismantling for transport purposes.
2. Proven superior high holding power capacity.
3. Excellent efficiency (weight / holding power)
4. Open construction for smooth and good penetration in different kinds of soil
5. No rotation, which means no decrease of holding capacity and no dragging of the anchor

1.Material: Steel Plate
2.Weight: 300KGS-25000KGS
3.Certificate: ABS, LR, BV, NK, DNV, RINA, RS, IRS,CCS

Technical specification:

Specifications:

Nominal Weight (kg)	Dimensions (mm)
Nominal Weight (kg)	A	B	C	D	E	F
300	1,200	960	1,080	457	1,380	Φ45
500	1,500	1,200	1,350	571	1,725	Φ50
1,000	1,875	1,500	1,686	714	2,155	Φ62
1,080	1,915	1,530	1,686	722	2,200	Φ62
2,000	2,363	1,890	2,124	900	2,715	Φ74
3,000	2,700	2,160	2,430	1,028	3,105	Φ90
4,000	2,975	2,380	2,676	1,133	3,420	Φ100
5,000	3,250	2,600	2,922	1,238	3,735	Φ110
7,000	3,575	2,860	3,216	1,360	4,110	Φ117
9,000	3,950	3,160	3,555	1,504	4,543	Φ135
10,000	4,100	3,280	3,690	1,561	4,715	Φ140
12,000	4,490	3,575	4,030	1,695	5,320	Φ145
13,500	4,670	3,720	4,195	1,765	5,535	Φ150
15,000	4,845	3,875	4,355	1,830	5,735	Φ150
18,000	5,140	4,080	4,610	1,940	6,080	Φ160
20,000	5,330	4,260	4,790	2,010	6,310	Φ170
22,500	5,490	4,360	4,905	2,060	6,470	Φ180
25,000	5,740	4,590	5,106	2,165	6,795	Φ180
27,500	5,980	4,785	5,385	2,245	7,095	Φ180
