    HVG MARINE ELECTRIC EQUIPMENT 0225

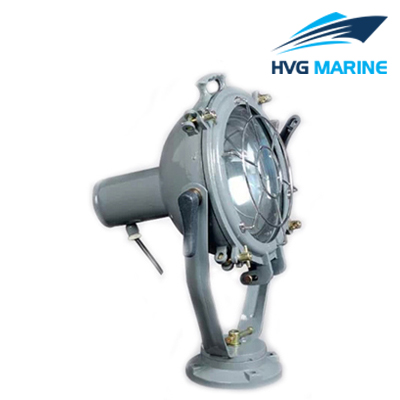

    HVG MARINE ELECTRIC EQUIPMENT 0220: Incandescent Bulb Spot Light

    Incandescent Bulb Spot Light is applied to illumination of ship, port dock, station and plaza etc.

    Procuct details:

    • Lamp holder: E40
    • Material: Steel
    • Protection class: IP55
    • Cable outsiade diameter: 10Φ12

    Characters:

    • 1. The lampshade is transparent toughened glass, the reflector is plated by chrome with high reflection efficiency.
    • 2. Light body can rotate for ±180°horizontally, and pitching 120°.

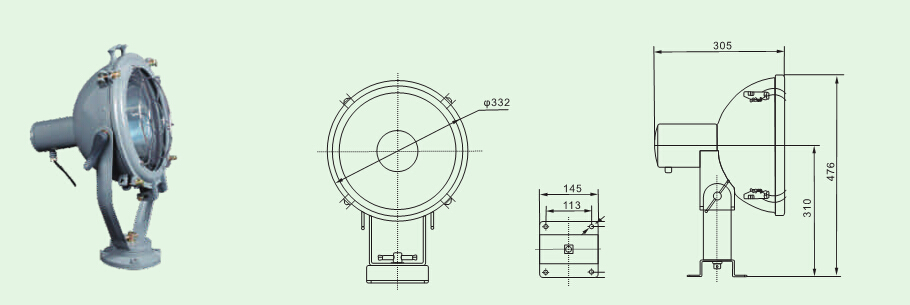

    TG1-A, TG1-B Drawing:

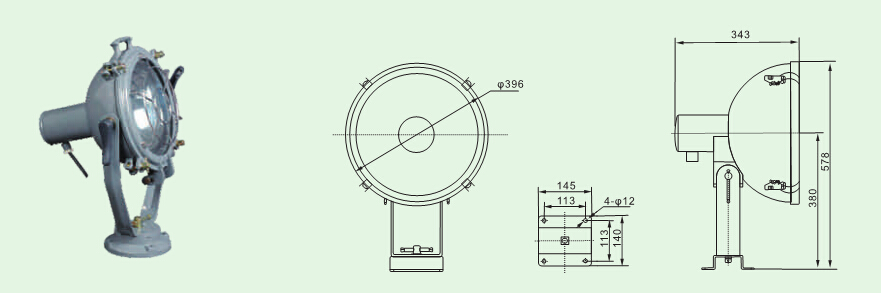

    TG2-A, TG2-B Drawing:

    Technical specification:

    • Specifications:
    Type Voltage Illuminant Power Luminous flux Weight Remark
    TG1-A



    DC110V

    AC220V





    Incandescent

    bulb

    		 300W 4610 8kg Without guard
    TG1-B 300W 4610 8kg With guard
    TG2-A 500W 8300 9.7kg Without guard
    TG2-B 500W 8300 9.7kg With guard
