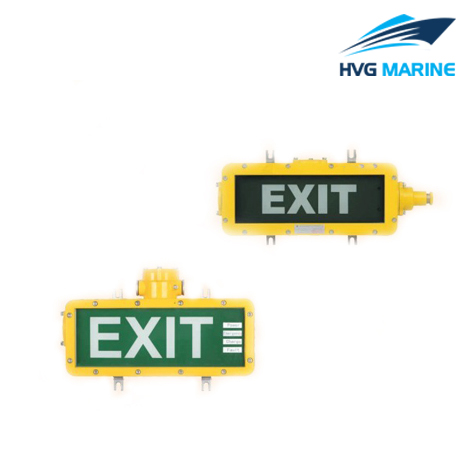

HVG MARINE ELECTRIC EQUIPMENT 0223: Explosion-proof Emergency Exit Light Fitting

The explosion-proof emergency exit light fitting can be used for safety illumination and emergency sign lights in ⅡA, ⅡB and ⅡC explosive gas atmosphere of petroleum exploitation, refinery, storeage, chemistry, medicine, military and sites. It is avaliable for both normal lighting and emergency lighting, and it can shaft to emergency state automatically when normal lighting power failure.

Product Details：

• 1. Standard: IEC60079, EN60079, IEC61241
• 2. Explosion-proof mark: ExdⅡCT6
• 3. Voltage: AC220-240V 50/60HZ
• 4. Rate of Power: 2W
• 5. Light Source: LED
• 6. Emergency times: 180min
• 7. Material: Copper-free aluminum
• 8. Protection Class: IP65
• 9. Weight: 6.4kg
• 10. Cable outside diameter: Φ10-Φ14
