HVG MARINE ELECTRIC EQUIPMENT 0220

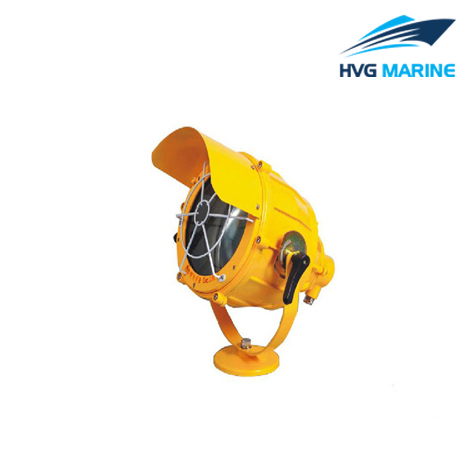

HVG MARINE ELECTRIC EQUIPMENT 0220: Marine Explosion-proof Spot Light

Explosion-proof spot light is suitable for the remote illumination of ship and oil platform, and can also applied to the explosive gas place zone 1, zone 2 with the temperature group T1-T4. It has good quality aluminum shell, brass net shield and toughened glass. The light body can be rorated 350 degrees horizontally and 45 degrees up and down. It has pass the examination of National Explosion-proof Safety Supervisal and Inspection Station of Luminaire.

Product Details:

1. Type: CTF1
2. Explosion-proof mark: ExedⅡBT2
3. Voltage: 220V/50HZ, 220V/60HZ
4. Rate of Power: 300W, 400W, 450W
5. Light Source: Incandescent, High-pressure mercury light, Metal halide light
6. Lampholder: E40
7. Material: Aluminum
8. Protection Class: IP56
9. Weight: 10kg
10. Cable outside diameter: Φ12-Φ14.5

Technical specification:

Specification:

Type	Voltage	Power	Illuminant	Weight	Explosion-proof mark
CFT1	220V/50HZ 220V/60HZ	300W	Incandescent	10kg	Exd ⅡBT2
		400W	High-pressure mercury light
		450W	Metal halide light
