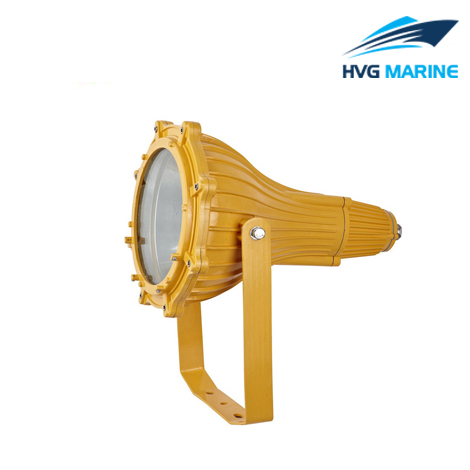

HVG MARINE ELECTRIC EQUIPMENT 0215: Marine Aluminum Alloy Explosion-proof Spot Light

The precise design of structure make it has waterproof, dustproof, anti-corrosion, heat disspation and other excellent performance, and can be used in outdoor for a long time. The shell of it is made form high strength alloy material with advanced spraying technology on the surface , which make it has advantages of high strength, strong corrosion resistance and impact resistance.

Product Details：

• 1. Type: BTC8210
• 2. Explosion-proof mark: ExedⅡCT4/ T6 Gb
• 3. Voltage: AC220V/50HZ
• 4. Rate of Power: 250W, 400W
• 5. Light Source: Gas discharge lamp
• 6. Protection Class: IP65
• 7. Corrosion-proof grade: WF1
• 8. Weight: 9.9kg
• 9. Cable outside diameter: Φ9-Φ12.5

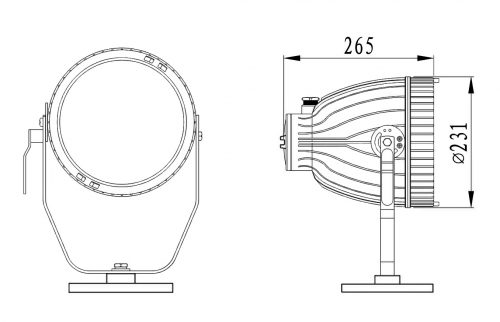

Sketch of aluminum alloy explosion-proof spot light:

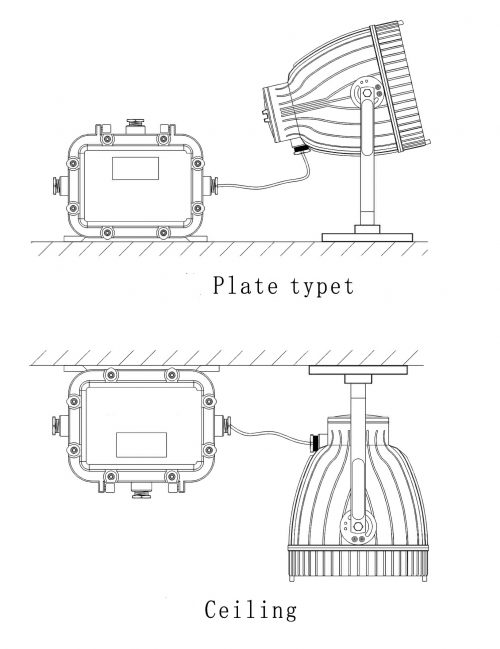

Installation of aluminum alloy explosion-proof spot light:
