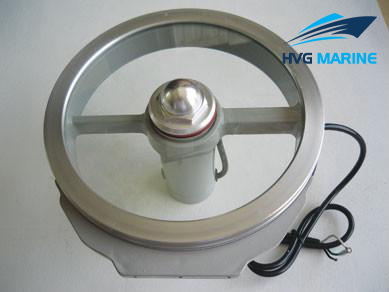

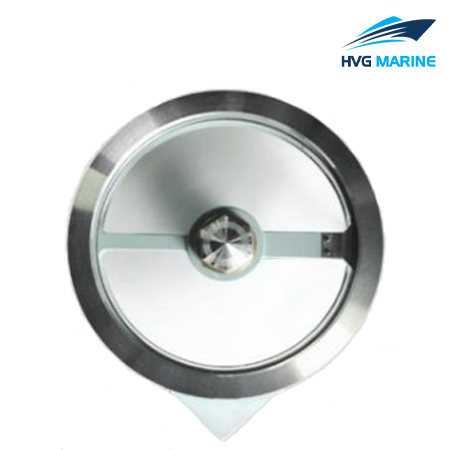

HVG MARINE ELECTRIC EQUIPMENT 0118: Watertight Clear View Screen

The rotating window suitable for installation on the observation window of the cab, using the center of the frame, motor driven centrifugal force generated by high-speed rotation of the glass window,thrown addition to attached to the window on the rain, snow, or the waves splash, in order to maintain a clear vision.In addition, the product can be with a heating device.This product complies with CB644-1992 ‘marine rotating window’ standard

Parameters:

• Supply Voltage: AC 220V AC110V
• Power frequency: 50Hz/60Hz
• Input power: ≤ 80W
• Protection class:
  • Outdoor part: IP56
  • The indoor section: IP23
• Install wall thickness (mm): 8,10,12,15, 19
  • Note: Average installation size 15 ~ 19mm
• Motor speed :1800 ± 200 r / min
