    HVG MARINE ELECTRIC EQUIPMENT 0112

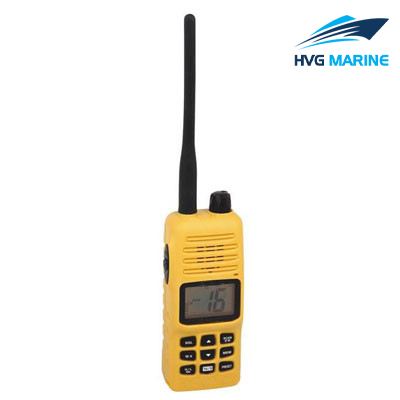

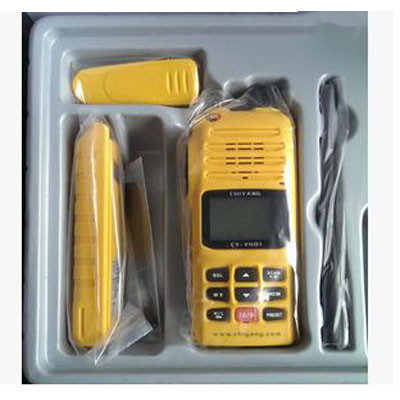

    HVG MARINE ELECTRIC EQUIPMENT 0112: Two Way VHF Radiophone

    Very high frequency (VHF) is the GMDSS system important component and it is radio equipment that mainly used in communication with risks and nearby rescue. It can use all VHF channels that are assigned for the international marine mobile service. When the emergency encounters to be possible, it will transmit the distress signal to other ships or the sea patrol leader in 16 channels. It is approved by IEC 61097-12, MSC.149 (77) and CCS.

    Technical specification:

    • Specification
    • Frequency range: 154-163MHz
    • Channel spacing: 25 KHz (12.5 KHz optional)
    • Operating temperature: -20℃ to +55℃
    • Sensitivity: 1μV for 20 dB SINAD
    • Adjacent channel power: >70 dB
    • Blocking: >90 dB
    • Spurious response: >70 dB
    • Harmonic distortion: <5%
    • Intermodulation rejection: >68 dB
    • RF output power: 1W (Lo)/2W (Hi)
    • Frequency error: <+1.5 KHz
    • Dismension (W x H x D): (56 x 133 x 27.5 mm) (without buckle & antenna)
    • Weight (Approx.): 280 g
