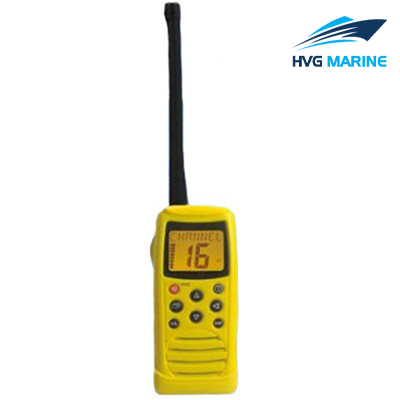

HVG MARINE ELECTRIC EQUIPMENT 0100: Survival Craft Two Way VHF Radio Phone
HVG MARINE ELECTRIC EQUIPMENT 0100
Technical specification:
- General requirements
- Transmitter section
- Receiver section
- Power for the DC7.4V
- Channel complying with the provisions of the Radio Regulations Appendix 18.
- Able to work on single and dual-frequency
- Able to use voice for distress and safety and public service communication
- Approved by GMDSS requirements
- “16” channel for the independent red is SOS channel
- Standard: IMOA809(19), GB15304-94, IEC-61097-12, MSC.149(77)
- There should be a label consistent with the provision of A.809 (19) Annex1 section 13.
- Able to single-channel work within 156.300MHz ～156.875MHz band
- Transmitting frequency band: 156.025MHz ～157.425MHz
- Receiving frequency band: 160.625MHz ～ 162.000MHz
- Transmission power: 5W, you can manually select as low as 1W
- Launch audio harmonic distortion: <10%
- Audio response: +1/-3dB of +6dB/octave
- The maximum deviation: ±5KHz
- Parasitic radiation: <0.25μV
- Current consumption: 5W 1.3A
- Tuning frequency: 156.025MHz-163.275MHz
- The first intermediate frequency 21.7KHz, the second IF 450KHz
- SINAD: 20dB
- Adjacent channel selectivity: >70dB
- Spurious response rejection: >70dB
- Intermodulation rejection: >68dB
- Spurious emission suppression: >2nW
- Current consumption: Max. radio output 0.9A, standby 0.3A
- Audio response: +1/-3dB of +6dB/octave
- AC noise: <-40dB
- Audio output power: 0.3W at 10% distortion with an 8Ω load conditions, the built-in speaker 0.5W
