HVG MARINE ELECTRIC EQUIPMENT 0096: Marine Sonar

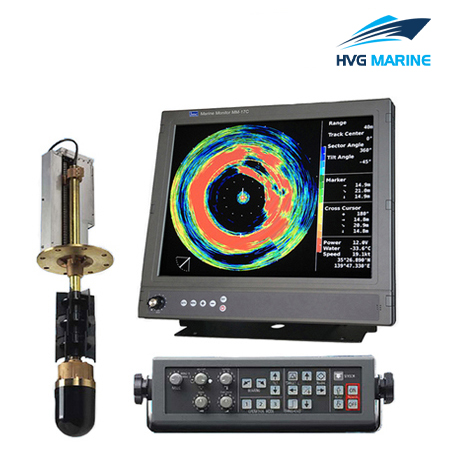

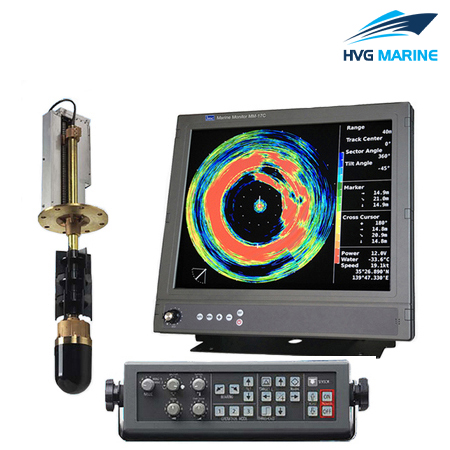

Marine Sonar is a basic marine navigation instrument. It detects and displays fish schools and underwater conditions. This sonar equips with a 6-inch probe and a 17-inch high definition LCD display to assist in recognition of bottom structure, and concentration and distribution of fish schools. Abundant fishing and navigation data make operator master fishing and navigation conditions during either the on-water or post processing operation. The operator’s commands will be responded quickly, and the relevant reaction can be seen on the display immediately.

Features

17-inch HD LCD screen
Swift response
High resolution
Easy to operate

Technical specification:

Specifications

Project	Data
Frequency	80 kHz
Display Size	17’’ LCD
Depth Range	sonar accuracy down to 2000m
Beam Width	19°(H)×15° (V)/80 kHz, 10°(H)×10° (V)/180 kHz
Transmission Power	≈ 1.5kW(maximum)
Gain Control	10, 20, 30, 40, 50 dBTVG; 10LogR,20LogR,30LogR,40LogR
Receiver By-Path	5 available phases
Probe Diameter	142mm/200~400mm
Scanning Speed (360°)	4.3s/20m, 8s/100m, 12.8s/200m
Beam Angle	+5° to -90°
Interface	NMEA-0183, USB(FAT32)
Power Supply	10.5~30V DC
Current Drain	Probe Unit: 4.1A/1.6A(12/24V)
	Control Unit: 6.2A/2.6A(12/24V)

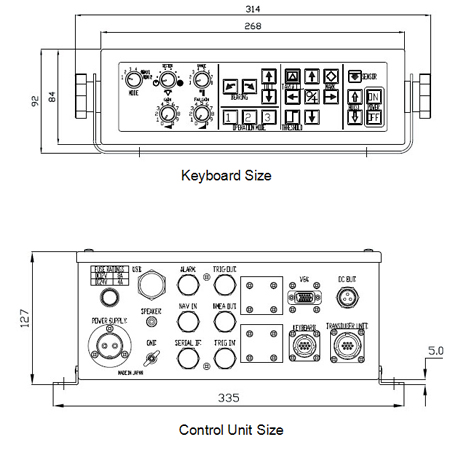

Weight	Control Unit: ≈3.5kg
	Keyboard: ≈1.1kg
	Probe: ≈38kg
