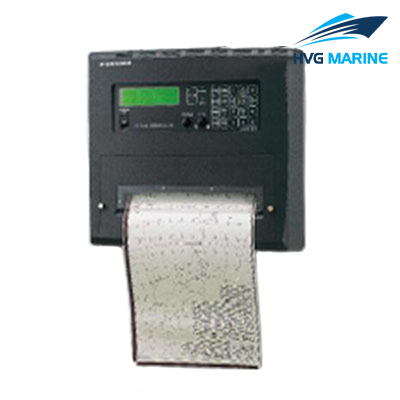

HVG MARINE ELECTRIC EQUIPMENT 0088: Weather Facsimile Receiver

Weather facsimile receiver is a weather information receiving equipment to gather and generates crucial information under all weather conditions at sea. Automatically selecting frequency with the highest signal quality enables it to print out weather charts with low noise, so it is widely used for recreational boats, fishing boats and workboats.

Features:

• Clear-cut weather charts and satellite images showing on 8′ thermal paper in nine gray levels
• Automatic channel selection through the received signal intensity
• 2-25MHz bands are pre-programmable channels available
• Full automatic operation by a built-in schedule timer (16 programs can be set per week for automatic operation)
• Quiet thermal printing due to minimal mechanical components

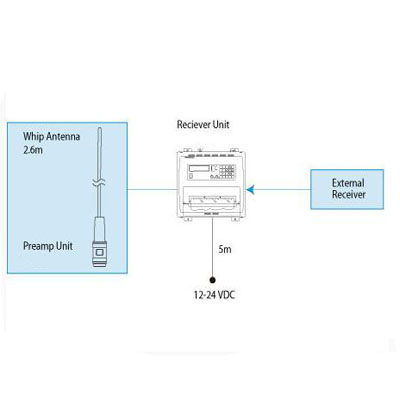

Interconnection Diagram:
