HVG MARINE ELECTRIC EQUIPMENT 0086

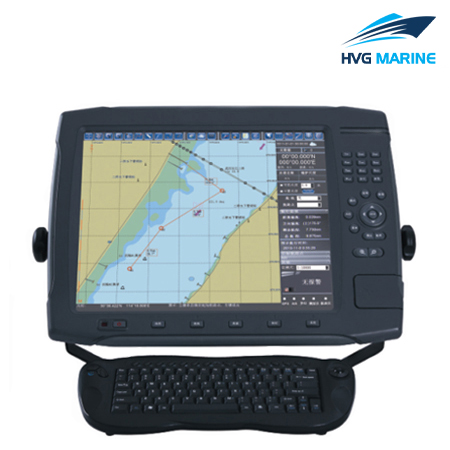

HVG MARINE ELECTRIC EQUIPMENT 0086: 17-Inch Marine Network GPS Chartplotter

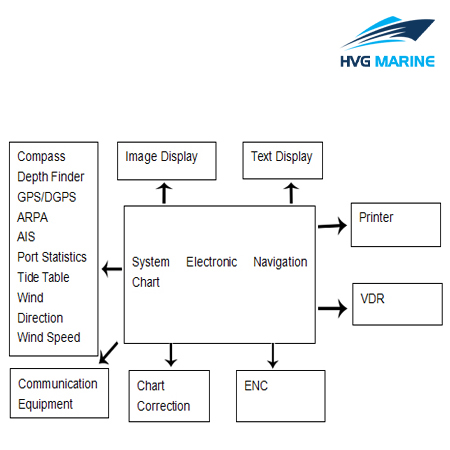

17-Inch Marine Network GPS Chartplotter is designed under years of professional production experience of navigation equipment, and it is a newly integrated navigation system. It integrates functions of GPS, AIS, ARPA technology, compass, depth finder, etc. It meets the standards of IHOS-57 and S-63, so the quality is guaranteed. This product is an excellent helper for you and benefits you a lot. So, don’t wait, please contact us right now.

Features

Streamline shell, it can be effectively waterproof, stock proof and corrosion-proof
High speed low power consumption CPU
Mass storage
3G network
No time-delay alarm
Real time upgrade

Technical specification:

Specifications

Project	Data
Display size	17’’ Color LCD
Resolution	1280×1024
Tracks	More than 100,000
Routes	More than 100,000 waypoints; more than 10,000 routes
Chart display	Navigation mark, reef, dangerous waters, shipwrecks, anchorage ground, prohibited area, isobath, place name,etc
Chart data format	S57, S63, CJ57, CJ63
Language	Chinese Simplified, English
Alarms	Arrival, off-course,
CPU	1.6G
Power supply	DC 10~30V
Average power consumption	<40W
Working temperature	-20~+60℃
External Interface	Three USB ports, one VGA output ports, two RS485 serial ports, one VHF antenna port, two GPS antenna ports
Internal GPS	Received frequency: 1575.42MHz Reception channel: 20 parallel channels Reception mode: C/A code Positional accuracy: <10m
Internal AIS	To show MMSI, name, location, course, speed, ship type,etc
