    HVG MARINE ELECTRIC EQUIPMENT 0075

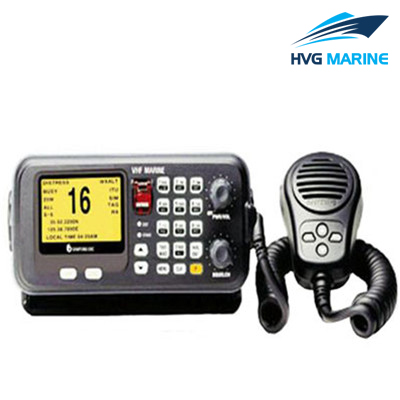

    HVG MARINE ELECTRIC EQUIPMENT 0075: VHF DSC Radio Phone

    Product features:

    • Includes all channels specified in ITU-RR(NOAA Weather channel)
    • Dual/triple watch function and tag scan function built-in
    • 20 MMSI number in 2 groups-MMSI number save, edition and call function
    • Latitude/longitude display function when connected with GPS
    • Over 160 characters can be seen in one large LCD
    • Priority selection of Channel 16 and adoption of noise free mic

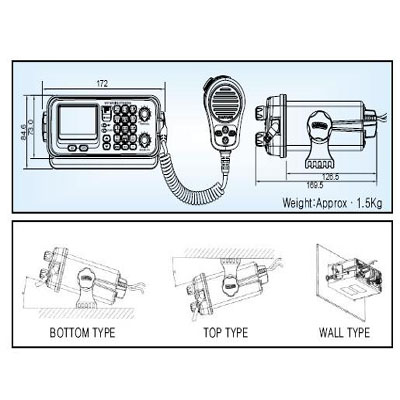

    • Compact and light design for any-where installation

    Technical specification:

    • General specifications:
    • Transmitter specifications:
    • Receiver specifications:
    • DSC watch keeping receiver specifications:

    1. Tx frequency: 151.000～159.150MHz

    2. Rx frequency: 151.000～163.275MHz

    3. Communication mode: simplex and semi-duplex

    4. Number of channel: 183(ITU55, USA57, CAN61, WEA10)

    5. Type of emission: FM(16K0G3E), DSC(16K0G2B)

    6. Frequency stability: ±10ppm(-20℃～+60℃)

    7. Antenna impendence: 50Ω

    8. Consumed currency: Tx high 5.5A max, MAX. audio 1.5A max(13.6V)

    9. Power supply: DC 24V(DC18～31.2V), AC100～120V, AC200～240V



    1. Antenna output: high 25W, low 1W

    2. Starting mode: synthersizer mode

    3. Modulation mode: variable reactance frequency modulation

    4. Occupancy band width: within 16KHz

    5. MAX. frequency deviation: ±5KHz

    6. Spurious emission: over 70dB

    7. MIC input impedance: 2KΩ

    1. Receiving mode: double conversation super heterodyne

    2. Receiving sensitivity: 0.32uV(20dB SINAD), 0.22uV(12dB SINAD)

    3. Squelch sensitivity: less than 0.22uV

    4. Spurious emission: less than -70dB

    5. Residual noise level: less than -40dB

    6. Audio output: 4.5W/4Ω

    1. Receiving frequency: 156.525MHz

    2. Radio wave mode: G2B

    3. DSC modulation speed: 1200 baud(within 600Hz±30×10-6Freq.)

    4. DSC modulation mode: FSK

    5. DSC modulation quotient: within m=2±10%

    6. Adjacent channel select: less than 10-2Bit error rate

    7. Spurious response: less than 10-2Bit error rate

    8. Inter-modulation response: less than 10-2Bit error rate

    9. Dynamic range: less than 10-2Bit error rate
