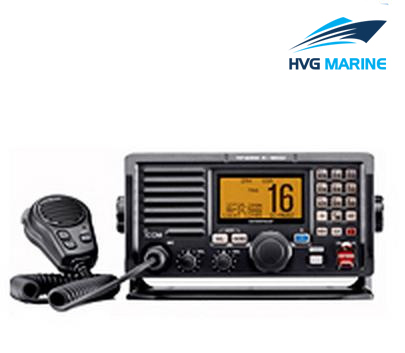

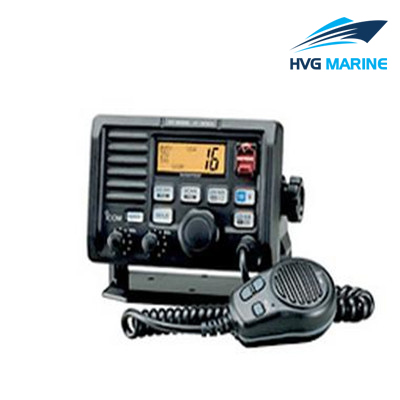

HVG MARINE ELECTRIC EQUIPMENT 0067: Ship VHF Transceiver
HVG MARINE ELECTRIC EQUIPMENT 0067
Technical specification:
- General
- Transmitter
- Receiver
- Frequency coverage: Transmit 156.025-157.425MHz, Receive 156.050-163.275MHz
- Mode: FM(16K0G3E), DSC(16K0G2B)
- Channel spacing: 25KHz
- Current drain(at 13.8V): Tx(at 25W) 6.0A max., Max. audio 1.2A max.
- Power supply requirement: 13.8V DC±15%
- Frequency stability: ±10ppm
- Operating temperature: -20℃～+60℃
- Dimensions: 165(W)×110(H)×109.4(D)mm
- Weight: 1130g
- Output power: 25W(high), 1W(low)
- Modulation system: variable reactance frequency modulation
- Max. frequency deviation: ± 5.0KHz
- Spurious emissions: less than -70dBc(high), less than -56dBc(low)
- Adjacent channel power: >70dB
- Receive system: double conversion superheterodyne
- Sensitivity(12dB SINAD): 0.25uV(typical)
- Squelch sensitivity: <0.3uv
- Intermodulation rejection ratio: >80dB
- Spurious response rejection ratio: >80dB
- Adjacent channel selectivity: >80dB
- Audio output power: 3.5W(typical) at 10% distortion with a 4Ω load
Note: All stated specifications are subject to change without notice or obligation.
