    HVG MARINE ELECTRIC EQUIPMENT 0062

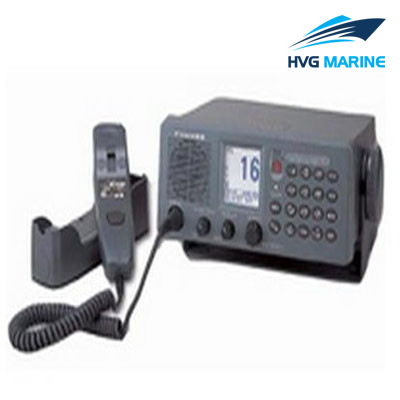

    HVG MARINE ELECTRIC EQUIPMENT 0062: Semi-duplex 25W VHF Radiophone with CH70 Watch Receiver

    Features:

    • Fully meets ITU, IEC, ETSI, IMO for GMDSS and other national standards
    • Compact all-in-one unit design includes a 25W radiotelephone, Class A DSC modem and CH70 watch receiver
    • Superb voice quality by employing the lower-noise-designed speaker
    • Dual/multiple watch on selected channels while monitoring CH16
    • Quick access to CH16 key
    • Automatic entry of own ship position and time form a GPS navigator
    • Easy channel readout with large characters
    • ATIS mode available for inland waterways
    • Connects to an office or home via existing PSTN(public switched telephone network)
    • Simple interface with a printer and VDR(No need for a dedicated Junction Box)
    • Standard: EN301 925 V1.1.1(2002.09), EN300 698-1 V1.2.1(2000.08), EN300 338 V1.2.1(1999-04)

    Technical specification:

    • General characteristics
    • Transmitter
    • Receiver
    • DSC section

    1. Class of emission: G3E (radiophone), G2B (DSC)

    2. Communication system: simplex/ semi-duplex

    3. Channel: all VHF channels, all channels in FCC Part 80, Max. 20 private channels, 10 weather channels

    4. Display: 22 characters×10lines, character 7×11 dots, backlit LCD

    5. Power supply: 24V DC, 0.6A (Standby), 1.6A (Rx), 4.7A max. (Tx)

    6. Operating temperature: -15 ℃to +55℃

    7. Waterproofing: IPX4(transceiver unit/hand set)

    1. Frequency range: 155.000-161.475MHz

    2. RF output power: 25W and 1W

    3. Frequency stability: less than ±1.5KHz

    4. Time-out timer: deactivates the transmitter after an uninterrupted transmission of more than 5 minutes

    1. Frequency range:

    Simplex: 155.000-159.600MHZ

    Semi-duplex: 161.475-164.200MHz

    2. Receiving system: double-conversion superheterodyne

    3. AF output power: 3W(4Ω loudspeaker), 2nW (150Ω handset)

    4. Audio response: De-emphasis of 6dB/oct+1/-3dB

    5. Sensitivity: less than 6dB at SINAD 20dB

    6. Adjacent channel selectivity: 70dB

    1. Message log:

    Receive: 50 distress messages and 50 non-distress messages

    Transmit: 50 messages

    2. Storage: 100 files

    3. Interface: Nav data: IEC 61162-1, Printer: centronics

    4. Alarm: audible and visual on receipt of a DSC call(one dedicated output port also available )

    5. Receiver characteristics:

    DSC frequency: CH70

    Calling sensitivity: symbol error rate 10-2, input 0dB

    Watch keeping: continuous watch on CH70

    IF: 38.3625MHz and 37.5MHz
