    HVG MARINE ELECTRIC EQUIPMENT 0049

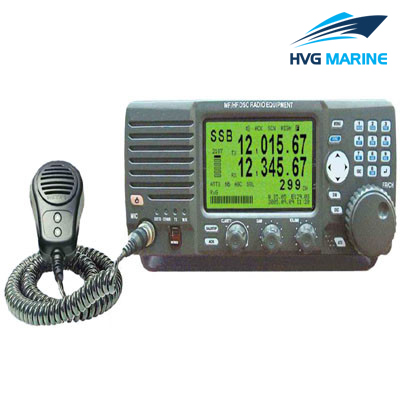

    HVG MARINE ELECTRIC EQUIPMENT 0049: 150W MF/HF DSC Radio Equipment

    Features:

    • Compliant with ITU, IMO and GMDSS standard
    • Adoption of new conceptual synthesizer technology improves voice quality, no- noise
    • Compact size and simplified key and dial enable to operate efficiently
    • Realization of dual display for NBDP terminal and makes it easier to read data
    • Designed DSC and W/K receiver built-in integrated transceiver
    • Available rapid scanning for the variation of transmitting power, frequencies and channel by group or individual
    • High stability for frequency with 10Hz step synthesizer
    • Storing up to 100 transmitted message(editable)
    • Storing up to 100 received message (50 messages for distress and 50 for ordinary)
    • Self-diagnosis function for easy maintenance
    • Speaker built-in. (external speaker: option)

    Technical specification:

    • General
    • DSC WATCH KEEPING RECEIVER
    • Transmitter
    • Receiver
    • NBDP

    1. Frequency range

    – TX: 1.6~27.5MHz (10Hz step)

    – RX: 500KHz~29.9999MHz (10Hz step)

    2. TX/RX channel: ITU channel, 300 memory channel

    3. Frequency tolerance: within 10Hz

    4. Type of emission: J3E, F1B, H3E

    5. Operation: Simplex & Semi-duplex

    6. Ambient temperature & humidity: -15℃~+55℃, 95%

    7. Power supply: DC24V±15% (2.5A at Reception, 15A at Transmission)

    1. Frequency: 2187.5, 4207.5, 6312, 8414.5, 12577, 16804.5KHz

    2. Type of emission: F1B, Mark: 1615Hz, Space: 1785Hz

    3. Data transfer speed: 100 baud

    4. Frequency tolerance: 10Hz

    1. Type of emission and output: J3E (150W), F1B (100W)

    2. Modulation: low level balanced

    3. Occupied band width: within J3E (3KHz), F1B (0.5KHz)

    4. Two-tone distress signal: 1300, 2100Hz

    1. Sensitivity: J3E 3uV, F1B 3uV, H3E 6uV, S/N 20dB 100m/w

    2. Intermediate frequency: 49.455MHz, 455KHz

    3. Overall distortion and noise: more than 20dB

    4. Input impedance: 50Ω

    1. Protocol: 625, 476-4, 490, 491, 492-3 & F130 by CCIR

    2. Communication mode: ARQ, CFEC, SFEC Memory : 16M

    3. Middle range of frequency: 1700 Hz

    4. Modulation speed: 100 baud(ARQ, FEC MODE)

    5. Type of modulation: AFSK

    6. Frequency tolerance: within 0.5Hz

    Related Products:

    Marine & Offshore EquipmentELECTRIC EQUIPMENT 0042
    HVG MARINE ELECTRIC EQUIPMENT 0042
    Marine & Offshore EquipmentELECTRIC EQUIPMENT 0046
    HVG MARINE ELECTRIC EQUIPMENT 0046

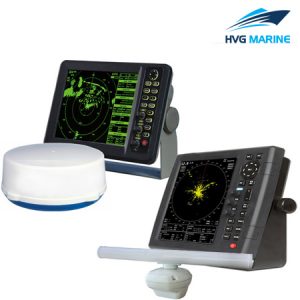

    Marine & Offshore EquipmentELECTRIC EQUIPMENT 0050
