    HVG MARINE ELECTRIC EQUIPMENT 0046

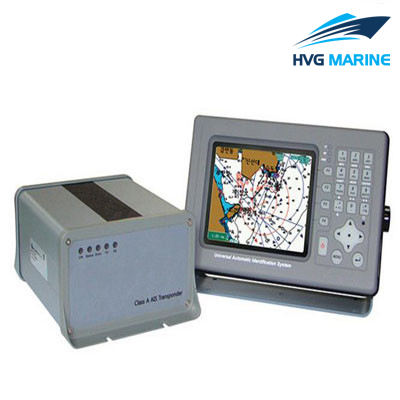

    HVG MARINE ELECTRIC EQUIPMENT 0046: 5.6-inch Color TFT LCD Marine Class-A AIS

    Features:

    1. Class-A Universal AIS Complying with IMO MSC. 74(69) Annex3, IEC 61993-2, ITU-R M.1371-3, ITU-R M.493-13, ITU-R M.825(DSC), IEC-60945, IEC-61162-1/2.

    2. Displaying navigational data based on Dynamic / Static data.

    3. Completely compatible with all system using NMEA standard.

    4. Edition of user message on navigation & ship securities is available.

    5. GLONASS/GPS function available receiving signal from Russian Satellite.

    6. Interfaces with RADAR, ECDIS, GYRO COMPASS, and external GPS, etc.

    7. Easy identification on other ship’s status by providing electronic chart data.

    8. System self-restoring function enhances stability.

    9. Adopted user-friendly one touch keypad.

    Technical specification:

    • General
    • Transmitter
    • Receiver
    • DSC Receiver
    • Serial inputs/outputs
    • GPS Antenna & Receiver
    • Environment

    1. Default Frequencies: AIS1 (CH87B): 161.975 MHz, AIS2 (CH88B): 162.025 MHz, DSC (CH70): 156.025 ~ 162.025 MHz

    2. Frequency range: 156.025 ~ 162.025 MHz

    3. Transponder size/weight: 221 x 165 x 95 mm, 1.5 kg

    4. MKD display: 5.6 inch color TFT LCD

    5. MKD size/weight: 255 x 162 x 75 mm, 0.9 kg

    6. GPS size/weight: 90 x 65mm (+140mm mounting bar), 0.2kg

    7. Operating voltage and current: 18～32VDC, 2.5～4A

    1. Power output: 12.5W max./2.0Wmin.

    2. Antenna impedance: 50Ω (SO-239)

    3. Channel spacing: 25KHz

    4. Modulation: GFSK

    1. Sensitivity: (PER) < 20% at -107 dBm

    2. Modulation: GMSK

    3. Data rate: 9600 bits/s

    4. Frequency stability: <±1 ppm

    5. Co-Channel: 10dB

    6. Adjacent Channel : 70dB

    7. IMD: 65dB

    8. Blocking: 84dB

    9. Channel spacing: 12.5KHz

    1. Sensitivity: BER <10-4 at 107 dBm

    2. Modulation: FSK (1300 Hz/2100 Hz)

    1. SENS1/2/3/4: IEC61162-1/2 (input only)

    2. LONG/AUX/PILOT/RTCM: IEC61162-1/2 (input & output)

    3. Display: RS422 non-isolated

    1. Antenna: PATCH ANTENNA / TNC (RG-58U)

    2. Receiver type: 16channel, L1 frequency, C/A code

    3. Accuracy: Acquisition -140 dBm / Tracking -150 dBm

    1. Operation temperature: -15˚C to +55˚C

    2. Storage temperature: -25˚C to +75˚C

    3. Vibration: IEC 60945
