HVG MARINE ELECTRIC EQUIPMENT 0043

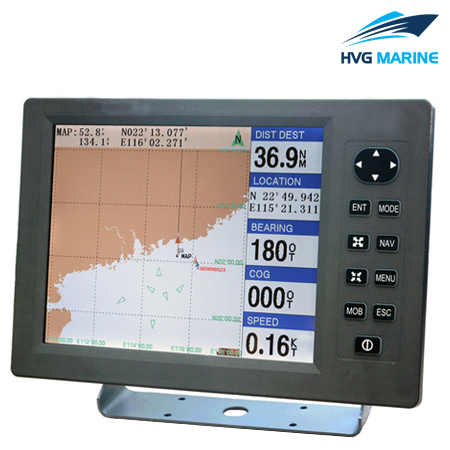

HVG MARINE ELECTRIC EQUIPMENT 0043: 12-Inch GPS and Chartplotter Combo

12-Inch GPS and Chartplotter Combo employs ARM9 processor which has the advantages of fast display of pictures, powerful software, professional operation design. This product has large map storage, which makes navigate direct and accurate. Besides, this product can be waterproof, resistant to harsh environment, shift to locate. It has the function of GPS navigator and marine chartplotter.

Features

TFT LED liquid crystal display which makes you read clearly under sunlight
New nautical map
260MHz high-speed processor
Resistant to poor environment
Large storage
Rapid positioning via GPS
A variety of data interfaces

Technical specification:

Specifications

Project	Data
Display Size	12’’ (246×184.5mm) LCD
Resolution	800×600
External Dimension	370×242×83 mm
Antenna	8m marine antenna
Interface	NMEA0183,USB Interface,AIS interface
Temperature	Working Temperature: -30℃-+65℃ Hidden Temperature: -35℃-+75℃
Power Supply	DC 10V-38V, 4W
GPS Receiver	16 Channels GPS
Accuracy	7m (CEP)
Positioning Time	Hot Start: 15s; cold start: 45s
Positioning Update Data-Rate	once per second
Waypoints	18,000
Routes	50(each route including 300 waypoints)
Base Map	China’s river system, nautical chart (the base map can be upgrade through USB)
