HVG MARINE ELECTRIC EQUIPMENT 0015

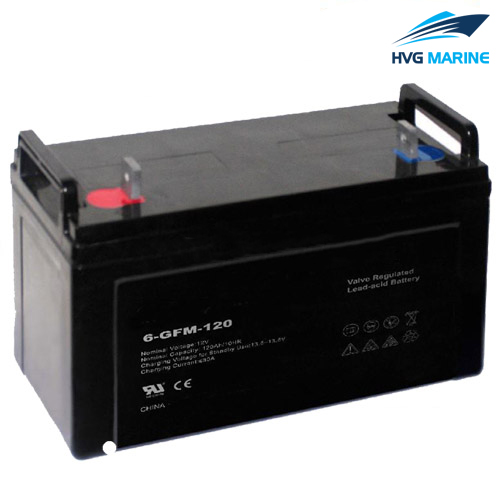

HVG MARINE ELECTRIC EQUIPMENT 0015: Battery for Sightseeing boat

Application:

Mainly for the internal-combustion engine start-up,ignition and lighting on watercraft and flat roof on the sea,battery series for watercraft,vessel.

Characteristics:

1. Excellent safety performance: No electrolyte leakage, battery swelling and cracking under normal use.
2. Good discharging performance: With smooth discharging voltage and mild discharging platform.
3. Good shock-proof performance: The fully charged and completely fixed battery, with 4mm amplitude and 16.7HZ frequency do have a normal open circuit voltage without leakage, batteries swelling or cracking problem after one-hour vibration.
4. Good impact-proof performance: The fully charged battery is proved to maintian normal open circuit voltage and be without leakage or batteries swelling or cracking after droping three times from 20cm height naturally to a 1 cm-thick hardwood board.
5. Good resistance to overdischarge: In temperature of 25 degrees Celsius, the fully charged battery discharges with fixed resistance which is equivalent to the one required by 1 CA discharge of the battery for three weeks, and it can restore capacity over 75%.
6. Good resistance to overcharge: The fully charged battery is proved to maintian normal open circuit voltage and be without leakage or batteries swelling or cracking in temperature of 25 degrees Celsius after chargeing at 0.1 CA for 48 hours, and the capacity maintian over 95%.
7. Good resistance to high current: The fully charged battery is proved to be without conductive part melted or any appearance deformation after discharging at 2 CA for 5 minutes or 10 CA for 5 seconds.

Technical specification:

Technical specification

Model NO.	Nominal Voltage(V)	Rated Capacity(AH) 20hrs/25℃	Approx. Weight(kg)	Dimensions(mm)			Terminal Type
Model NO.	Voltage	Rated Capacity(AH) 20hrs/25℃	kg	Length	Width	Height	Terminal Type
NP12-1.2Ah	12	1.2	0.55	98	45	52	T0
NP12-1.9Ah	12	1.9	0.87	178	35	60	T0
NP12-2.3Ah	12	2.3	0.9	178	34	60	T0
NP12-3.3Ah	12	3.3	1.24	134	67	60	T0
NP12-4Ah	12	4	1.35	90	70	101	T1
NP12-4.5Ah	12	4.5	1.53	90	70	101	T1
NP12-5Ah	12	5	1.7	90	70	101	T1
NP12-7Ah	12	7	2.1	151	65	94	T2
NP12-7.2Ah	12	7.2	2.2	151	65	94	T2
NP12-7.5	12	7.5	2.3	151	65	94	T1
NP12-8Ah	12	8	2.35	151	65	94	T1
NP12-9Ah	12	9	2.5	151	65	94	T1
NP12-10Ah	12	10	3.1	151	98	94	T2
NP12-10Ah II	12	10	2.95	151	65	111	T2
NP12-12Ah	12	12	3.35	151	98	94	T2
NP12-12Ah II	12	12	3.76	151	98	94	T2
NP12-15Ah	12	15	4.8	181	77	167	T3
NP12-17Ah	12	17	5	181	77	167	T3
NP12-18Ah	12	18	5	181	77	167	T3
NP12-20Ah	12	20	5.5	181	77	167	T3
NP12-24Ah	12	24	7.6	166	125	166	T4
NP12-24Ah II	12	24	7.8	166	126	174	T4
NP12-26Ah	12	26	8.1	175	166	125	T4
NP12-28Ah	12	28	8.6	175	166	125	T4
NP12-35Ah	12	35	10.2	196	131	155	T16
NP6-225Ah	6	225	31.5	322	178	226	T9
NP12-33Ah	12	33	10	196	131	155	T16
NP12-35Ah	12	35	10.2	196	131	155	T16
NP12-38Ah	12	38	12.2	197	166	174	T12
NP12-40Ah	12	40	13	197	166	174	T12
NP12-45Ah	12	45	13.5	197	166	171	T12
NP12-50Ah	12	50	16.2	230	138	211	T12
NP12-55Ah	12	55	16.2	230	138	211	T9/T16
NP12-60Ah	12	60	19.4	350	166	179	T7
NP12-65Ah	12	65	20.5	350	166	179	T9
NP12-70Ah	12	70	22	260	169	211	T16
NP12-80Ah	12	80	23.4	260	169	211	T14
NP12-90Ah	12	90	27	307	169	211	T8/T16A
NP12-100Ah	12	100	29.8	331	173	213	T10
NP12-100Ah II	12	100	30	407	174	209	T11
NP12-120Ah	12	120	36.5	407	174	209	T11
NP12-134Ah	12	134	41.5	341	173	282	T9/T20
NP12-150Ah	12	150	42.5	484	171	241	T11
NP12-150Ah II	12	150	50	551	110	287	T46
NP12-165Ah	12	165	49	494	204	208	T11
NP12-180Ah	12	180	56.5	522	240	216	T9
NP12-200Ah	12	200	60	522	240	216	T11
NP12-200Ah II	12	200	64	522	240	216	T9/T20
NP12-220Ah	12	220	64	522	240	216	T9
NP12-250Ah	12	250	73	520	268	220	T11
