HVG MARINE ELECTRIC EQUIPMENT 0011

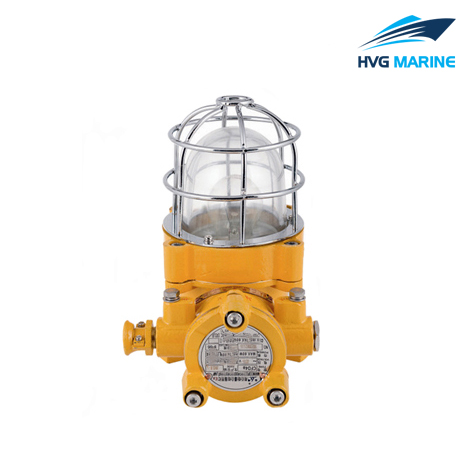

HVG MARINE ELECTRIC EQUIPMENT 0011: Brass Incandescent Explosion-proof Pendant Light

Brass incandescent explosion-proof light can be used safely and reliably in the place with explosive air mixture. The shell is made of high quality brass foundry, and the lampshade is toughened glass with brass guard. The gland has two kind, one is tube screw type, screw is G3/4, other one is bugle-type. It is conform to National standard GB3836, GB12045 THE TECHNICAL CONDITION OF MARINE EXPLOSIVE-PROOF LIGHT.

Product Details:

Type: CFD2, CFD3
Explosion-proof mark: ExdⅡBT3, ExdⅡBT4
Light Source:Incandescent, Self-ballast high-pressure mercury lamp
Lampholder: E27
Material: Brass
Protection Class: IP55, IP56
Cable outside diameter: Φ11-Φ13
Approved by CCS

Technical specification:

Specification:

Type	Explosion-proof mark	Voltage	Power	Illuminant	Protection class	Weight
CFD2a	ExdⅡBT3	220V	200W	Incandescent	IP55	19kg
CFD2b	ExdⅡBT3	220V	125W	Self-ballast high-pressure mercury lamp	IP55	19kg
CFD3	ExdⅡBT4	24V	25W	Incandescent	IP56	13.5kg
		110V	40W/60W
		220V	40W/60W/100W
CFD3-Ⅰ	ExdⅡCT4	24V	25W			8.5kg
		110V	40W/60W
		220V	40W/60W/100W
