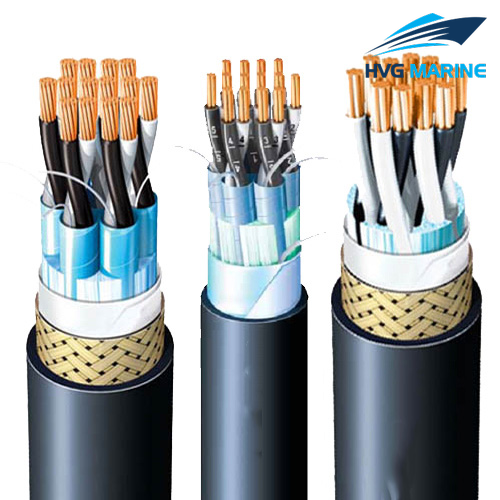

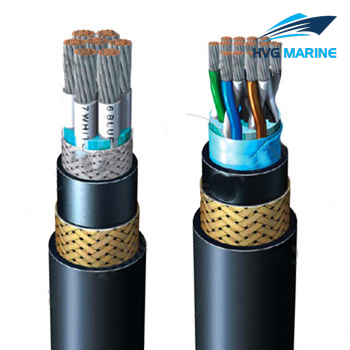

HVG MARINE CABLE 0064: Fire-resistant Marine Telecommunication Cable 250V

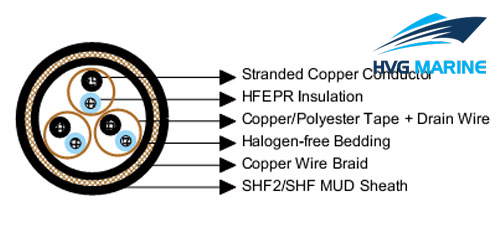

- 1. Conductor: tinned copper
- 2. Insulation: XLPE/EPR
- 3. Tape
- 4. Individual screen: Aluminum-foil
- 5. Tape
- 6. Inner sheath: PO (SHF1, SHF2)
- 7. Screen/Armored: tinned copper wire braid
- 8. Outer sheath: PO (SHF1, SHF2)
Flammability Features:
- DA: Single cable flame retardant
- SA: Bunched cable flame retardant
- SC: Bunched cable flame retardant, halogen-free, low-smoke, low-toxicity.
- NC:Fire Resistant Bunched cable flame retardant, halogen-free, low-smoke, low-toxicity.
Specifications:
- Cores: 1, 2, 3, 4, 5, 7, 10, 12, 14, 16,19, 24, 27, 30, 33, 37.
- Nominal Cross-section Areas: 0.75 mm2,1 mm2, 1.5mm2, 2.5mm2
Marine Electrical Cable Certificates: CCS,LR,ABS,DNV,BV,GL,NK,RINA; 85℃
