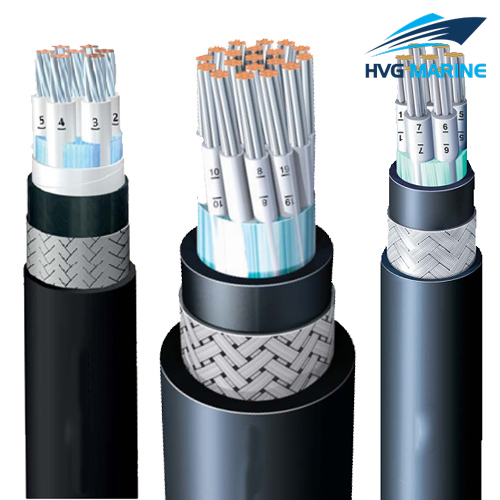

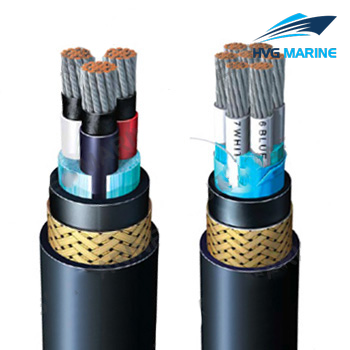

HVG MARINE CABLE 0062: JIS C 3410 Flame retardant Marine Control Cable 250V

Fire-retardant control Cable 250V

Application: The cable is intended for power, lighting and control system of shipboard and off-shore building.

PECIFICATION & STANDARDS

• IEC 60288 IEC60092-376 IEC60092-351 IEC60092-359
• IEC60332-1 IEC60332-3Cat.A
• IEC61034 IEC 60754
• JIS C3410-2010

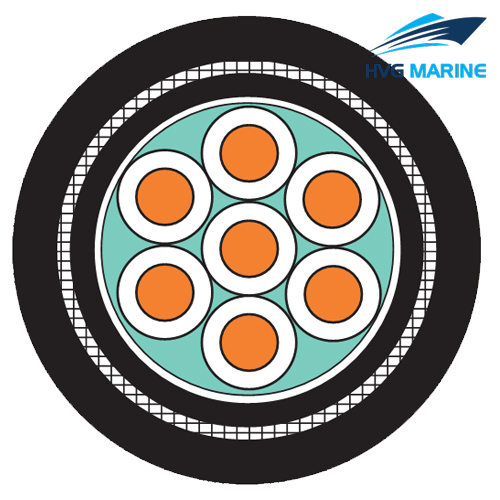

Marine Electrical Cable Construction:

• 1. Conductor: tinned copper
• 2. Insulation: EPR/XLPE
• 3. Tape
• 4. Inner sheath: PCP/CSP/PVC/PO (SHF1, SHF2)
• 5. Armored: tinned copper wire braid
• (Galvanized steel wire braid)
• 6. Outer sheath: PVC/PO (SHF1, SHF2)

Flammability Features:

• DA: Single cable flame retardant
• SA: Bunched cable flame retardant
• SC: Bunched cable flame retardant,halogen-free, low-smoke, low-toxicity.

Specifications:

• Cores: 1, 2, 3, 4, 5, 7, 10, 12, 14, 16,19, 24, 27, 30, 33, 37.
• Nominal Cross-section Areas: 0.75 mm²,1 mm², 1.5mm², 2.5mm²,

Certificates: CCS,LR,ABS,DNV,BV,GL,NK,RINA; 85℃
