HVG MARINE CABLE 0025

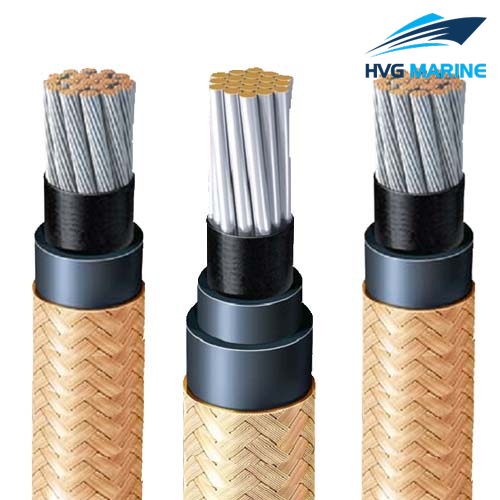

HVG MARINE CABLE 0025: FA-SPYC Low Voltage Shipboard Power and lighting Cable

Applications

For fixed installations on ships and offshore-units in all locations.
Description:Flame-Retardant,Single core,EP rubber insulated,PVC sheathed and steel wire braided Shipboard Power cable 600/1000V.

Cable Construction

1.Conductor:Tinned Annealed Stranded Copper,Class2 according to IEC60228
2.Insulation:85°C (EPR),Ethylene Propylene Rubber
3.Sheath:(PVC),Polyvinyl Chloride
4.Armor:Galvanized Steel Wire Braid

FA-SPYC Low Voltage Shipboard Power and lighting Cable Standard

JIS C 3410-1999
IEC 60092-350
IEC 60332-1
IEC 60332-3 Cat.AF(for FA-type)

Technical specification:

(FA-)SPYC, SPYCB Specifications

Conductor			Thick. of insulation	Thick. of bedding	Dia. over bedding	Dia. of armor	(FA-) SPYC, SPYCB
Size	Construction	O.D	Thick. of insulation	Thick. of bedding	Dia. over bedding	Dia. of armor	Nominal overall dia.	Tolerance	Cable weight (Approx.)
mm2	No./mm	mm	mm	mm	mm	mm	mm	mm	Kg / Km
1.5	7/0.53	1.59	1.0	1.0	5.9	0.3	7.2	0.4	100
2.5	7/0.67	2.01	1.0	1.0	6.3	0.3	7.8	0.4	120
4	7/0.85	2.55	1.0	1.0	6.9	0.3	8.2	0.4	140
6	7/1.04	3.12	1.0	1.0	7.4	0.3	8.7	0.4	170
10	7/1.35	4.05	1.0	1.1	8.6	0.3	9.9	0.4	225
16	7/1.70	5.1	1.0	1.1	9.6	0.3	10.9	0.4	300
25	7/2.14	6.42	1.2	1.2	11.5	0.3	12.8	0.5	425
35	7/2.52	7.56	1.2	1.2	12.7	0.3	14.0	0.6	535
50	19/1.78	8.9	1.4	1.3	14.6	0.3	15.9	0.6	695
70	19/2.14	10.7	1.6	1.4	17.2	0.3	18.5	0.7	960
95	19/2.52	12.6	1.6	1.5	19.3	0.3	20.6	0.8	1250
120	37/2.03	14.2	1.6	1.5	20.9	0.3	22.2	0.9	1510
150	37/2.25	15.8	1.8	1.6	23.1	0.3	24.4	1.0	1830
185	37/2.52	17.6	2.0	1.7	25.5	0.3	26.8	1.1	2250
240	61/2.25	20.3	2.2	1.8	28.8	0.3	30.1	1.2	2910
300	61/2.52	22..7	2.4	1.9	31.8	0.4	33.6	1.3	3680
