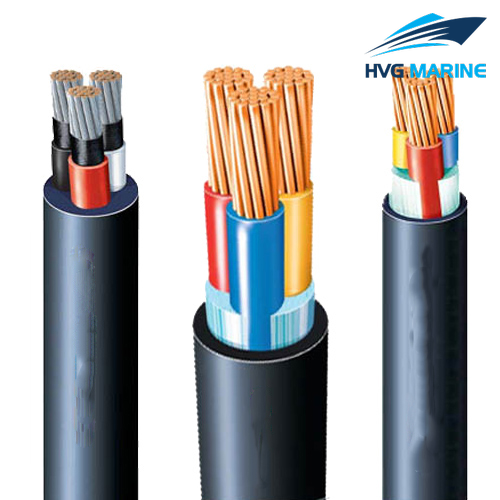

HVG MARINE CABLE 0024: CJPF Unarmored Marine Power and Lighting Cable
Applications: This product is used in ships,petrol platforms and offshore buildings for power,light and control systems,usually used for fixed installation in most areas and open deck in ships.

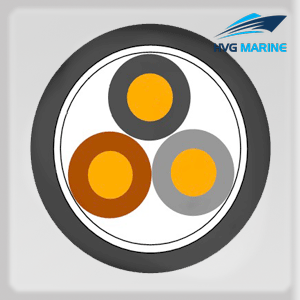

Constructions:
1.Conductor
Stranded copper wire 1.0mm2 to 10mm2 Class 2
Stranded copper wire 16mm2 to 240mm2 Class 5(Flexible)
Annealed stranded copper wire on request.
2.Insulation
XLPE
3.Bedding
Separate tape
4.Sheath
Polyolefine Plastic(SHF1)
Service Conditions
1.Rated Voltage:U0/U 0.6/1kV
2.long time working temperature 90℃
3.flexible cables for mobile devices,the other cables are fixed laying
cable bending radius while laying is as below
| Cable Structure | Cable Outer Diameter | Minimum Bending Radius |
| Metal Braided Armored | 6D | |
| Non Armored | D≤25 | 4D |
| D>25 | 6D |
Certifications:
Our marine cable has been type approved by the following Classification Societies
