HVG MARINE CABLE 0010

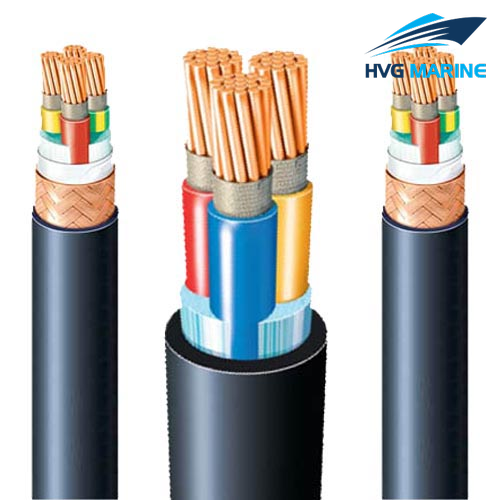

HVG MARINE CABLE 0010: SFOI Fire resistance shipboard power cable 0.6/1KV

SFOI Fire resistance shipboard power cable 0.6/1KV Application

SFOI Fire resistance low voltage power cable is suitable for marine applications where circuit integrity is important in the event of a fire, including shipwiring.Unarmored fire resistant cable for fixed installation in ships where cable protection is needed. Power,control,alarm,emergency and critical systems.This cable can be installed and operated both indoors and outdoors.

Technical specification:

SFOI Fire resistance shipboard power cable 0.6/1KV Standards
SFOI Fire resistance shipboard power cable 0.6/1KV Construction

Design Guide	IEC 60092-350, 353
Insulation Material	IEC 60092-351
Sheath Material	IEC 60092-359
Flammability	IEC 60332-1 & IEC 60332-3 Category A
Fire Resistance	IEC 60331(750℃ or 1000℃)
Halogen Content	IEC 60754-1,2, 0.5%(Max.)
Smoke Emission	IEC 61034-1,2, 60%(Min.)

Classification	Code Letter	Construction Detail
Conductor		Plain, Annealed, Stranded copper wire
Fire resisting layer	S	Mica/Glass Tape (MGT)
Insulation	S	Cross-linked Polyethylene (XLPE) as per IEC 60092-351
Inner Covering	F	Halogen Free Tape (Lapped inner covering)
Armor	O	Copper Wire Braid (O)
Sheath	I	Halogen Free Thermoplastic compound (IEC 60092-359, SHF1)Sheath color Black
