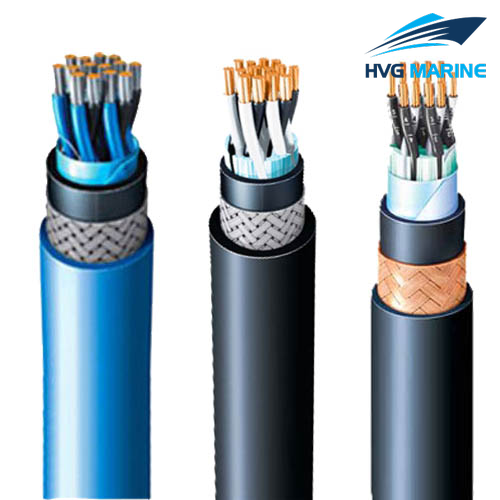

HVG MARINE CABLE 0003: TIOI TICI Armored shipboard telephone cable

TIOI TICI Armored shipboard telephone cable Application

This cable is designed for telephone & instrument circuits up to 150/250V.
Suitable for use in commercial marine applications,including shipwiring and the petrochemical and process control industries. For instrumentation and communication systems
Maximum conductor temperature : 90℃

TIOI TICI Armored shipboard telephone cable Standards

Design Guide : IEC 60092-350, 376
Insulation Material : IEC 60092-351
Sheath Material : IEC 60092-359
Flammability : IEC 60332-1 &IEC 60332-3 Category A
Halogen Content : IEC 60754-1,2, 0.5%(Max.)
Smoke Emission : IEC 61034-1,2, 60%(Min.)

TIOI TICI Armored shipboard telephone cable Core Identification

1) Each pair/triad
– Pairs : Black, White
– Triads : Black, White, Red
2) Multi pair/triad cables
Multi pair/triads are identified by lapping of the pair/triad numbered tape or by the pair/triad number
print directly on the each cores.
3) The other color scheme may be applicable when purchaser required.

Technical specification:

TIOI TICI Armored shipboard telephone cable Construction

Classification	Code	Construction detail
Conductor		Stranded plain annealed copper wire as per IEC 60228, Class 2
Insulation	T	XLPE as per IEC 60092-351
Cabling		– Insulated conductors shall be cabled – Flame retardant & non-hygroscopic fillers may be used- Suitable tape(s) may be applied on the cabled core – A Filler may be applied to obtain a circular Cable
Inner sheath	I	SHF1 as per IEC 60092-359
Armor	O(C)	– Braid of plain annealed copper wire(o) or galvanized steel wire(c) – Coverage density : Min. 90%
Outer sheath	I	SHF1 as per IEC 60092-359,Outer sheath color : Black

Note:
The other color of sheath and insulation may be applicable when purchaser required.
Stranded tinned annealed copper wire as per IEC 60228, Class 2 may be applicable when purchaser required.
