    HVG MARINE CABLE 0005

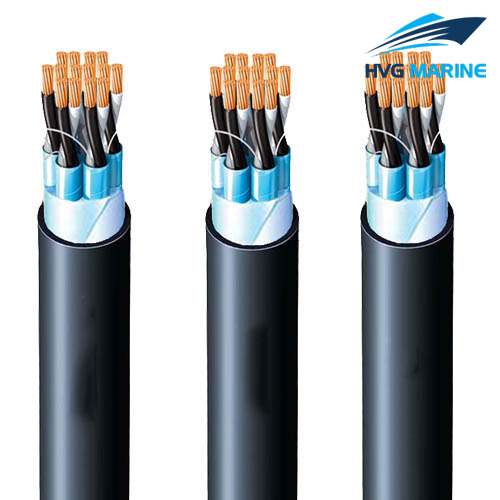

    HVG MARINE CABLE 0005: TXXI(i&c) light weight shipboard communication cable

    TXXI(i&c) light weight shipboard communication cable Application

    • This cable is individual and collective screened,designed for telephone & instrument circuits up to 150/250V.Suitable for use in commercial marine applications.

    TXXI(i&c) light weight shipboard communication cable standards

    • Design guide : IEC 60092-350 & IEC 60092-376
    • Insulation material : IEC 60092-351, XLPE
    • Sheath material : IEC 60092-359, SHF1
    • Flame retardant : IEC 60332-1 & IEC 60332-3 Category A
    • Halogen content : IEC 60754-1, 0.5%
    • Smoke emission : IEC 61034, 60%
    • Cold bend/impact : CSA 22.2 No. 0.3 (-40° / -35° )

    TXXI(i&c) light weight shipboard communication cable specification

    • Cores: 1P, 2P,3P,4P,5P,7P,10P,12P,14P,16P,19P,20P, 24P, 30P (P:Pair)
    • 1T, 2T,3T,4T,5T,7T,10T,12T,14T,16T,19T,20T, 24T, 30T (Triad)
    • Size (sqmm): 0.75, 1, 1.5, 2.5

    Technical specification:

    • TXXI(i&c) light weight shipboard communication cable construction
    Classification Code Letter Construction Detail
    Conductor Plain, Annealed, Stranded copper wire
    Insulation T Cross-linked Polyethylene (XLPE) as per IEC 60092-351
    Individual Screen (i) Each pair/triad are individually screened by aluminium backed polyester tape
    (AL/PS tape) with tinned copper drain wire.
    Suitable binder tape may be wrapped on/below the individual screen.
    Collective Screen (c) Pair/triad laid up and collective screened by aluminium backed polyester
    tape (AL/PS tape) with tinned copper drain wire.
    Suitable binder tape may be wrapped on/below the collective screen.
    Inner Covering X Non
    Armor X Non
    Sheath I Halogen Free Thermoplastic compound (IEC 60092-359, SHF1)
    Sheath color – Non-intrinsically safe cable : Black
    – Intrinsically safe cable : Blue
