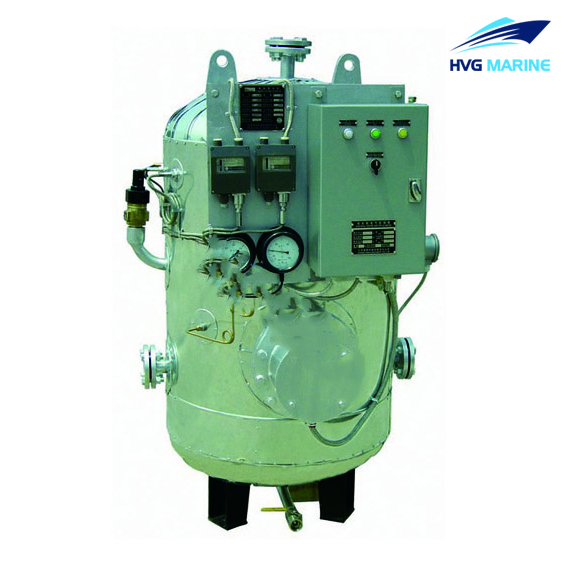

HVG MARINE AUXILIARY MACHINERT 0124: DRG Series Electric Heating Calorifier
This series calorifier are suitable for heating water on the ship or platform,heating fresh water for crew.
This series calorifier can be combined with fresh water hydrophore on board , namely use fresh water to renew the stock of hot water tank, and then heated by electric for useage of entire vessel.
| Type |
DRG- |
||||
|
0.12 |
0.2 |
0.3 |
0.5 |
1.0 |
|
| Capacity(m3) |
0.12 |
0.2 |
0.3 |
0.5 |
1.0 |
| Working Pressure (MPa) |
0.4 |
||||
| Design Pressure (MPa) |
0.44 |
||||
| Testing Pressure (MPa) |
0.66 |
||||
| Safety Valve Open Pressure (MPa) |
0.42 |
||||
| Water Inlet Temp. (°C) |
15 |
||||
| Water Outlet Temp. (°C) |
65 |
||||
| Hot-water capacity (kg/h) |
180 |
360 |
540 |
720 |
900 |
| Electric Heating Power (kw) |
12 |
24 |
36 |
48 |
60 |
| The laying of outer surface of insulation layer thickness (mm) |
40 |
||||
| Outsourcing galvanized steel sheet thickness (mm) |
0.7 |
||||
