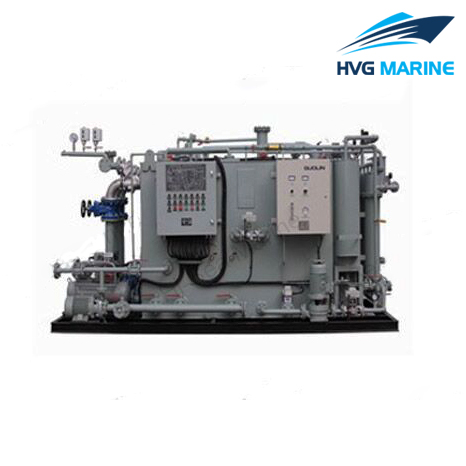

HVG MARINE AUXILIARY MACHINERT 0117: 20 Persons Wastewater Treatment Plant General
1. Purpose: The wastewater treatment plant is applicable to treat the sewage and the grey water from the toilet, to meet the standard of IMO.
2. Working Condition
- 2.1 Environment Condition
- 2.1.1 Working Environment Temperature:0℃～+50℃
- 2.1.2 Environment Relative Humidity: ≤90%
- 2.2 Voltage: AC380V/50Hz/3φ
3. Composition
The device consists of main components as follows:
|
No. |
Name |
Unit |
Qty. |
Remarks |
|
1 |
Main body（buffer tank, sequence tank） |
Set |
1 |
Q235-A |
|
2 |
Cutting pump（50CPW0.5-10B） |
Set |
1 |
|
|
3 |
Air pump(CYBW-20 ) |
Set |
1 |
|
|
4 |
Discharge pump (CLH40-32-2(Z)A) |
Set |
1 |
|
|
5 |
Dosing pump(DL7-5) |
Set |
1 |
|
|
6 |
Membrane assembly(6040W) |
Set |
1 |
|
|
7 |
UV-sterilizer(JX-0.5UV) |
Set |
1 |
|
|
8 |
Electric control box |
Set |
1 |
|
|
9 |
Motor two-way ball valve(C800-40BF) |
Pc |
1 |
|
|
10 |
Flowmeter(Z-6016) |
Pcs |
2 |
|
|
11 |
Level switch |
Pcs |
2 |
|
|
12 |
Pressure gauge(YC60 0～0.6MPa) |
Pcs |
3 |
4. Connection
- 3.1 Power connection: AC380V/50Hz/PH
- 3.2 Physical connection:（Flange standard: GB2506-2005 PN1.0）
- Sewage inlet DN100
- Vent DN65
- Effluent outlet DN32
- Flush water inlet DN40
- Overflow DN40
- Membrane flush water inlet DN25
- Compressed air inlet 1/2”
- Emergency discharge outlet DN40
