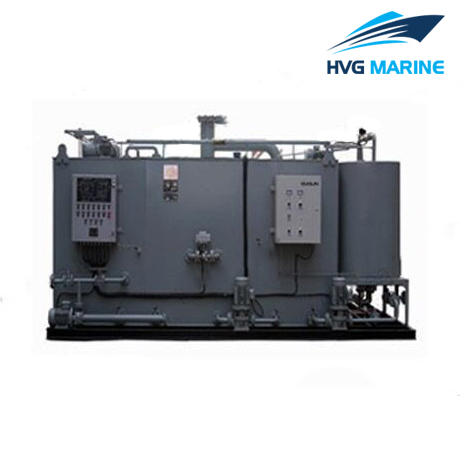

HVG MARINE AUXILIARY MACHINERT 0116: 3780L/d Marine Sewage Treatment Plant
Purpose:
- The device is applicable to treat the sewage and the grey water from the toilet, to meet the standard of IMO.
- Working Condition:
- Environment Condition
- Working Environment Temperature: 0℃～+50℃
- Environment Relative Humidity: ≤90%
- Voltage: AC380V/50Hz/3φ
Composition:
The device consists of main components as follows:
|
No. |
Name |
Unit |
Qty. |
Remarks |
|
1 |
Main body（buffer tank、sequence tank） |
Set |
1 |
Q235-A |
|
2 |
Cutting pump（50CPW0.5-10B） |
Set |
1 |
|
|
3 |
Air pump(CYBW-20 ) |
Set |
1 |
|
|
4 |
Discharge pump (CLH40-32-2(Z)A) |
Set |
1 |
|
|
5 |
Dosing pump(DL7-5) |
Set |
1 |
|
|
6 |
Membrane assembly(6040W) |
Set |
1 |
|
|
7 |
UV-sterilizer(JX-0.5UV) |
Set |
1 |
|
|
8 |
Electric control box |
Set |
1 |
|
|
9 |
Motor two-way ball valve(C800-40BF) |
Pc |
1 |
|
|
10 |
Flowmeter(Z-6016) |
Pcs |
2 |
|
|
11 |
Level switch |
Pcs |
2 |
|
|
12 |
Pressure gauge(YC60 0～0.6MPa) |
Pcs |
3 |
