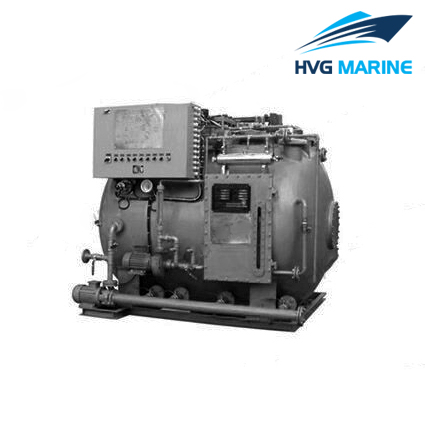

HVG MARINE AUXILIARY MACHINERT 0115: 1190L/d Sewage Treatment Plant
Constitution
HVG MARINE AUXILIARY MACHINERT 0115: 1190L/d Sewage Treatment Plant type device is mainly constituted by aeration tank, contact oxidation tank, settling tank, membrane tank, cutting pump, air pump, discharge pump, electric control box, membrane module, UV sterilizer and accessories of pipe lines.
Summary all the rules and effluent standards as followings:
|
IMO old standard |
IMO new standard |
USCG |
Alaska |
|
|
TSS (mg/l) |
50 |
35 |
150 |
30 |
|
BOD5 (mg/l) |
50 |
25 |
NR(Not required) |
30 |
|
COD (mg/l) |
NR(Not required) |
125 |
NR(Not required) |
NR(Not required) |
|
Coliform (pc/100ml) |
250 |
100 |
200 |
20 |
|
PH |
6~9 |
6~8.5 |
NR(Not required) |
6~9 |
|
Chlorine (mg/l) |
NR(Not required) |
＜0.5 |
NR(Not required) |
10 |
|
Test days (day) |
10 |
16 |
10 |
30 |
Voltage: 3Ф/380V/50Hz
External interface (The mating flange of interface is provided):
- Sewage inlet: DN150
- Air vent: DN100
- Discharge outlet: DN32
- Flush water inlet: DN32
- Overflow outlet: DN65
- Emergency outlet: DN32
- Membrane tank flush water inlet: DN32
- Gray water inlet (reserve): DN65
Characteristics:
1. Main technical characteristic
- (1) Model: SWCM-15 Type
- (2) Capacity: Rated capacity: 15persons
Max capacity: 17 persons
- ⑶ Average treatment load: 1190L/d
- ⑷ Discharge standard: The discharge water should meet the requirements of IMO MEPC.159 (55) resolution.
- TSS≯35mg/l
- BOD5≯25 mg/l
- COD≯125 mg/l
- Coliform≯100个/100ml
- PH=6～8.5
- ⑸ Discharge water pressure: 0.15 Maps
- ⑹ Ambient temperature: Relative humidity
- ⑺ Discharge style: Automatic discharge
2. Outline dimension: L×B×H≈1850×1200×1450 mm
3. Power: 2.5KW
4. Operating and maintenance space ≥600mm (surface)
