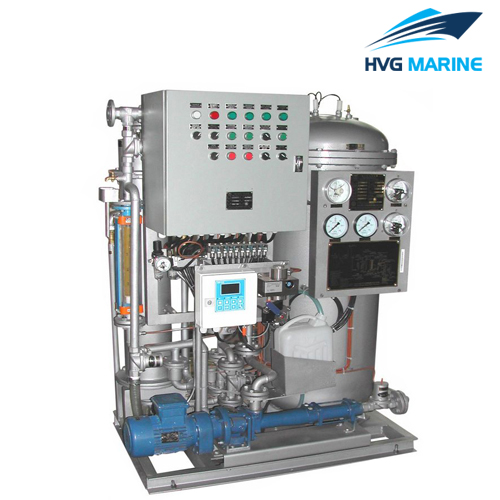

HVG MARINE AUXILIARY MACHINERT 0113: 0.50m3/h Rated Capacity Marine Oil Water Separator
This device can be used to treat oily bilge water in order to make it reach the requirements of IMO.MEPC.107 (49) resolution, which is also called 15ppm bilge separator. It contains type approved 15ppm bilge water separator, 15ppm bilge alarm and automatic shut down Device.
Technical Specification:
- Rated capacity: 0.50 m3/h
- Effluent oil content≤15PPm
- Electric power:415V/ 50Hz /3Φ (Optional)
- Motor power:0.55 kw
- Method of heating: Electric heating
- Outline Dimension: L×B×H=1100×690×1460 mm
- Discharge pressure: 0.05-0.1Mpa
- Protection grade: Electric Motor IP 44
- Electric control box IP 44
- Electric cable: For marine use
- Outer joint flange standard: GIS standard
- Surface color of the equipment: dark grey
- Nameplate :Stainless steel, white characters on black background
Type oily water separator:
|
No. |
Name |
Model |
Quantity |
|
1 |
1st Stage Coalescer | 322DF-1-01 |
1 set |
|
2 |
2nd Stage Filter | 322DF-1-02 |
2sets |
|
3 |
3rd Stage Membrane | 322DF-1-03 |
4sets |
|
4 |
Electric Box | 322DF-1-00SY |
1 set |
|
5 |
15ppm bilge alarm |
1 set |
|
|
6 |
Marine motor |
1 set |
|
|
7 |
pump |
1 set |
|
|
8 |
Pneumatic Valve |
7 sets |
|
|
9 |
Flow meter |
1 set |
|
|
10 |
Dosing Pump |
1 set |
|
|
11 |
Safety valve |
1 set |
|
|
12 |
Pressure Meter |
3 sets |
|
|
13 |
Thermometer |
1 set |
|
|
14 |
Pressure Meter |
1 set |
|
|
15 |
Relative Pipe System |
1 set |
|
|
16 |
Trouble alarm delay |
|
Spare Parts
|
No. |
Name |
Model |
Quantity |
Note |
|
1 |
Spare parts of the pump |
|
1 set |
|
|
2 |
The 2nd filter core |
322DF-1-02 |
1 sets |
|
|
3 |
O-Ring of the 1st coalescer |
DFY-1001 |
1 piece |
|
|
4 |
O-Ring of the 2nd filter |
DFY-1002 |
1 piece |
|
|
5 |
O-Ring of the flange |
DFY-1003 |
8 piece |
|
|
6 |
The seawater filter |
1 piece |
