HVG MARINE AUXILIARY MACHINERT 0093

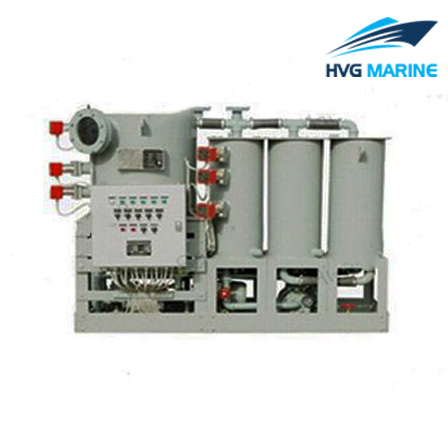

HVG MARINE AUXILIARY MACHINERT 0093: Marine Waste Water Treatment Device

The marine waste water treatment device is applicable to treat the toilets sewage on ships and also to sterilize grew water. The treated sewage can meet internatinal standards for effluent discharge. The operation of the plant is automatic. Warning is set to show the load status of sewage in the tank. The unit has small footprint, but the treatment ability is strong, it can serve many people in low flush water condition.

The plant can be welded or bolted on the ship base.

Technical specification:

Technical parameters

Model	Person Allowed	Capacity	Power	Weight (kg)		Quality of Effluent
Model	Person Allowed	(m3)	(kW)	Dry	Wet	Quality of Effluent
WCX-24	24	1.68	4	460	580	Suspended solid SS≯50mg/L, Biochemical Oxygen Demand BOD5≯50mg/L, Colicin≯250/100ml, PH value:6-9
WCX-36	36	2.52	4	530	685
WCX-72	72	5	5	854	1194
