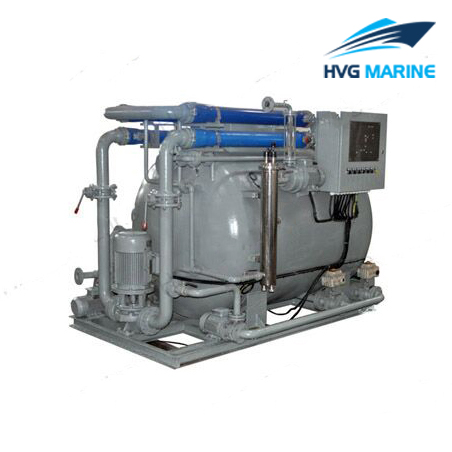

    HVG MARINE AUXILIARY MACHINERT 0096: Waste Water Treatment Plant

    This waste water treatment plant is applicable to treat the sewage, which means human body wastes and the wastes from the toilets on vessels and which is also called “black water”, to meet the effluent standards of IMO MEPC.159(55), and discharge the effluent to overboard. It is also applicable to treat galley & shower drainage which is called “grey water” on condition that the “grey water” should be pretreated or should select a bigger capacity model to match with. CCS, BV, EC, and GL certificater supply.

    Technical specification:

    • Technical Parameters
    Specification SWCM-200
    Treated Load Average (L/D) 14700
    Pinnacle(L/H) 1838
    Organic Load (kgBOD5/d) 7.35
    Rated Capacity (Person) 200
    Max. Capacity (Person) 210
    Voltage AC 380V/50HZ/3Φ, AC440V/60HZ/3Φ
    Power (kw) 6.0
    Size (mm) (L*W*H) 3630*2200*2350
    Weight Dry (kg) 3000
    Wet (kg) 13267
    Effluent standard BOD5 25mg/L ≯, COD≯125mg/L, TSS≯35mg/L, coliform≯100/100ml, PH6~8.5, CL2≯0.5mg/L
